2416+201

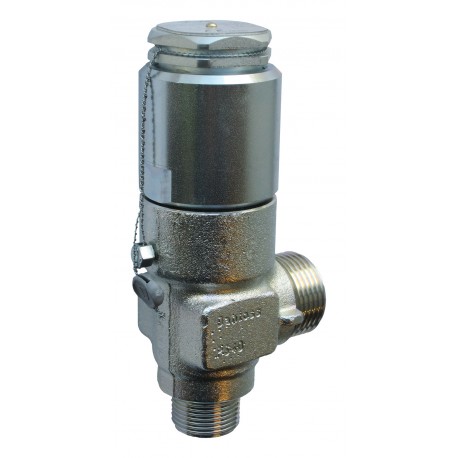

2416+201 DANFOSS REFRIGERATION BSV 8 T 213 SAFETY VALVE 13 BAR
$0.00USD
3174 in stock
Key Specifications
EAN ():5702428193030
Type ():BSV 8
Volume ():1.239 Liter
Approval ():CEEACLLC CDC TYSKTSUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428193030 |
| Type () | BSV 8 |
| Volume () | 1.239 Liter |
| Approval () | CEEACLLC CDC TYSKTSUKCA |
| Direction () | Angleway |
| Lift [mm] () | 1.45 mm |
| Net weight () | 1.563 Kg |
| Fluid Group () | 1 |
| Gross weight () | 1.652 Kg |
| PED category () | IV |
| Refrigerants () | R1234yfR1234ze(E)R125R134aR152aR170R22R227eaR236faR245faR290R32R401AR402AR404AR407AR407BR407CR407FR407HR409AR410AR413AR417AR421AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR452CR454AR454BR454CR455AR463AR502R507AR512AR513AR513BR515AR515BR516AR600R600aR717R744 |
| Product group () | Safety relief valves |
| Packing format () | Single pack |
| Connection type () | G |
| Flow area [in2] () | 0.078 in² |
| Flow area [mm2] () | 50 mm² |
| Nominal diameter () | DN15 |
| EU RoHS compliance () | No - out of scope |
| Flow diameter [in] () | 0.315 in |
| Flow diameter [mm] () | 8 mm |
| Connection standard () | ISO 228-1 |
| Product description () | Safety Relief Valve |
| Connection size [in] () | 5/16 in |
| Connection size [mm] () | 8 mm |
| Pressure certificate () | Danfoss certificate included |
| Inlet connection type () | G |
| Certified Coef of Disc () | 0.43 kg |
| Pressure setting [bar] () | 13 bar |
| Pressure setting [psig] () | 189 psig |
| Product Name Description () | Safety relief valve |
| Inlet connection size [in] () | 3/4 |
| Outlet connection size [in] () | 1 |
| Quantity per packing format () | 1 pc |
| Connection Internal/External () | External |
| Temperature range [°C] [max] () | 100 °C |
| Temperature range [°C] [min] () | -30 °C |
| Temperature range [°F] [max] () | 212 °F |
| Temperature range [°F] [min] () | -22 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Temp. range with POV [°C] [max] () | 100 °C |
| Temp. range with POV [°C] [min] () | -50 °C |
| Temp. range with POV [°F] [max] () | 212 °F |
| Temp. range with POV [°F] [min] () | -58 °F |
| Temp.range w.Safety valve [°C] [max] () | 100 °C |
| Temp.range w.Safety valve [°C] [min] () | -30 °C |
| Temp.range w.Safety valve [°F] [max] () | 212 °F |
| Temp.range w.Safety valve [°F] [min] () | -22 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Safety relief valve, BSV 8, G, 13 bar
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: G, Inlet connection size [in]: 3/4, Outlet connection size [in]: 1
