219.12536

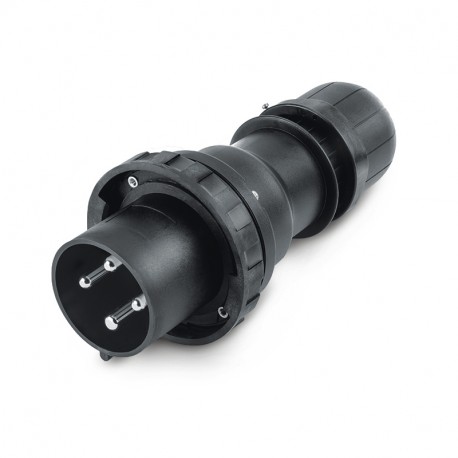

219.12536 SCAME PLUG 3P+E IP66/IP67 125A 6h 380-415V AC
$0.00USD
3938 in stock
Key Specifications
Poles::3P+E
Colour::BLACK
Volume::87100 CCM
EAN code::8001636295695
Supplier Information
SCAME
Products: 16209
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Poles: | 3P+E |
| Colour: | BLACK |
| Volume: | 87100 CCM |
| EAN code: | 8001636295695 |
| Quantity: | 8 |
| Dimensions: | 400X650X335 (MM) |
| Net Weight: | 1.201KG |
| Description: | Carton |
| Cable outlet: | CABLE GLAND |
| Gross weight: | 12.32 KG |
| Hour position: | 6h |
| Minimum order: | 1NR |
| Rated current: | 125A |
| Rated voltage: | 380-415V |
| Commercial series: | OPTIMA-EX[GD] Series |
| Working frequency: | 50Hz |
| Protection degree IP: | IP66 |
| Group and categories EX: | II 2 GD |
| Synthetical description: | PLUG |
| Ambient temperature Ta max: | 60 °C |
| Ambient temperature Ta min: | -35 °C |
| Types of available outlets: | STRAIGHT |
| Harmonized System Code (HSCode): | 85366990 |
