In Stock Hot Product
204.WB11E-3C32

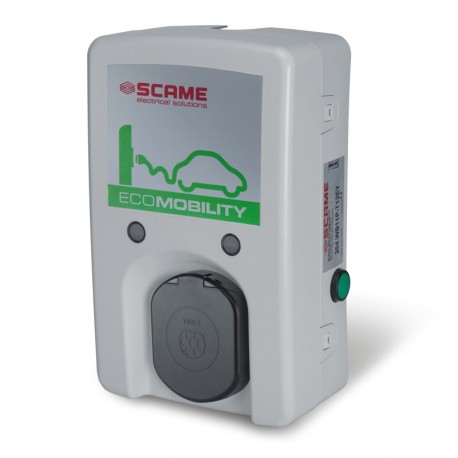

204.WB11E-3C32 SCAME WALL BOX 1 SOCKET 3C 7kW
$0.00USD
4770 in stock
Key Specifications
Poles::1P+N+E
Colour::GREY
Volume::15318.435 CCM
EAN code::8001636309255
Supplier Information
SCAME
Products: 16209
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Poles: | 1P+N+E |
| Colour: | GREY |
| Volume: | 15318.435 CCM |
| EAN code: | 8001636309255 |
| Quantity: | 1 |
| GLOW WIRE: | GW 650°C |
| Dimensions: | 263X353X165 (MM) |
| Net Weight: | 2.581KG |
| Description: | Box |
| EV standard: | Type 3C 1P+N+T 32A 230V~ 7,4kW |
| Gross weight: | 2.746 KG |
| Minimum order: | 1NR |
| Rated current: | 32A |
| Rated voltage: | 230V |
| Commercial series: | LIBERA Series |
| Working frequency: | 50Hz |
| Working temperature: | -25°C/+40°C |
| Protection degree IK: | IK08 |
| Protection degree IP: | IP54 |
| Synthetical description: | WALL BOX 1 SOCKET 3C |
| Harmonized System Code (HSCode): | 85371098 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
