In Stock Hot Product
204.UB11B-3C32

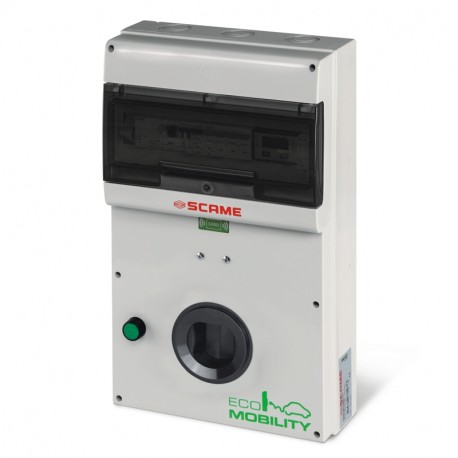

204.UB11B-3C32 SCAME CON. UNIT 1 SOCKET WITH LOCK 3C 7kW IP54
$0.00USD
4861 in stock
Key Specifications
Poles::1P+N+E
Colour::GREY
Volume::40443 CCM
Options::With RFID identification
Supplier Information
SCAME
Products: 16209
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Poles: | 1P+N+E |
| Colour: | GREY |
| Volume: | 40443 CCM |
| Options: | With RFID identification |
| EAN code: | 8001636290300 |
| Quantity: | 1 |
| GLOW WIRE: | GW 650°C |
| Dimensions: | 340X610X195 (MM) |
| Net Weight: | 5.6KG |
| Description: | Carton |
| EV standard: | Type 3C 1P+N+T 32A 230V~ 7,4kW |
| Gross weight: | 6.4 KG |
| Minimum order: | 1NR |
| Rated current: | 32A |
| Rated voltage: | 230V |
| Mounting version: | SURFACE MOUNTING |
| Commercial series: | LIBERA Series |
| Working frequency: | 50Hz |
| Working temperature: | -25°C/+40°C |
| Protection degree IK: | IK07 |
| Protection degree IP: | IP54 |
| Synthetical description: | CON. UNIT 1 SOCKET WITH LOCK |
| Harmonized System Code (HSCode): | 85371098 |
