1SEP101891R0002

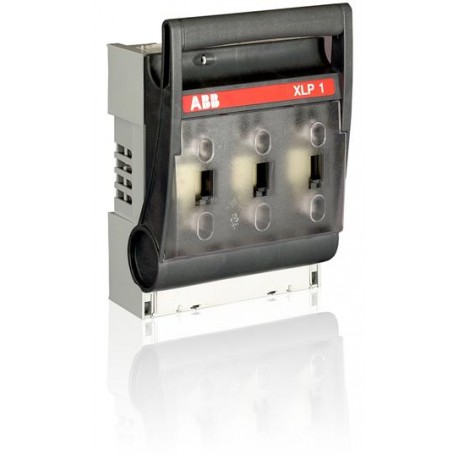

XLP1-6BC 1SEP101891R0002 ABB 250 A incl. 6 Bridge Clamps
$0.00USD
3296 in stock
Key Specifications
EAN::7025840013730
Customs Tariff Number::85389099
Minimum Order Quantity::1 piece
Product Net Width: (Ordering):185 mm
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN: | 7025840013730 |
| Customs Tariff Number: | 85389099 |
| Minimum Order Quantity: | 1 piece |
| Product Net Width: (Ordering) | 185 mm |
| Product Net Height: (Ordering) | 270 mm |
| Product Net Weight: (Ordering) | 1.8 kg |
| Package Level 2 EAN: (Dimensions) | 7025840013730 |
| Fuse Size: (Container Information) | NH1 |
| Fuse Type: (Container Information) | NH |
| Package Level 1 Units: (Dimensions) | 1 piece |
| Package Level 1 Width: (Dimensions) | 185 mm |
| Fuse System: (Container Information) | DIN |
| Handle Type: (Container Information) | Front cover 3P |
| Package Level 1 Height: (Dimensions) | 270 mm |
| Product Name: (Container Information) | Fuse Switch Disconnector |
| Suitable For: (Container Information) | Baseplate |
| Frequency (f): (Container Information) | MainCircuit 50/60 Hz |
| Mounting Type: (Container Information) | Baseplate |
| Product Net Depth / Length: (Ordering) | 116 mm |
| Terminal Type: (Container Information) | Cable Clamp |
| Order Multiple: (Container Information) | 1 piece |
| Number of Poles: (Container Information) | 3 |
| Package Level 1 Gross Weight: (Dimensions) | 1.8 kg |
| Product Main Type: (Container Information) | XLP1 |
| Special Functions: (Container Information) | Not Included |
| Rated Current (In): (Container Information) | 250 A |
| Rated Voltage (Ur): (Container Information) | 500 V AC690 V AC800 V AC |
| Package Level 1 Depth / Length: (Dimensions) | 116 mm |
| Rated Frequency (f): (Container Information) | Main Circuit 50/60 Hz |
| Degree of Protection: (Container Information) | IP30 |
| Rated Operational Voltage: (Container Information) | 500 V AC690 V AC800 V AC |
| Declaration of Conformity - CE: (Additional Information) | 1SEP500050P0001 |
| ETIM 4: (Certificates and Declarations (Document Number)) | EC001040 - Fuse switch disconnector |
| ETIM 5: (Certificates and Declarations (Document Number)) | EC001040 - Fuse switch disconnector |
| ETIM 6: (Certificates and Declarations (Document Number)) | EC001040 - Fuse switch disconnector |
| ETIM 7: (Certificates and Declarations (Document Number)) | EC001040 - Fuse switch disconnector |
| UNSPSC: (Certificates and Declarations (Document Number)) | 39121600 |
| Data Sheet, Technical Information: (Additional Information) | 1SEC312012D0201 |
| Fuse Protected Short-Circuit Making: (Container Information) | MainCircuit 50 kiloampere rms |
| Rated Operational Current AC-21B (Ie): (Container Information) | (690 V) 200 A |
| Rated Operational Current AC-22B (Ie): (Container Information) | (500 V) 250 A |
| Fuse Protected Short-Circuit Withstand: (Container Information) | MainCircuit 50 kiloampere rms |
| Rated Impulse Withstand Voltage (Uimp): (Container Information) | Main Circuit 8 kV |
| WEEE Category: (Certificates and Declarations (Document Number)) | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Object Classification Code: (Certificates and Declarations (Document Number)) | S |
