1SDA100613R1

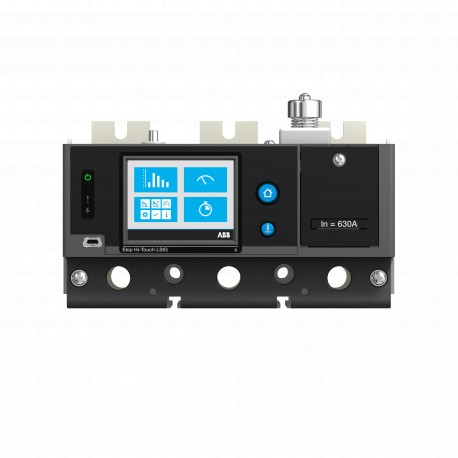

1SDA100613R1 ABB Ekip Hi-Touch LSIG In 630 XT5 3p
$0.00USD
3861 in stock
Key Specifications
:1SDC210099D0206
EAN:8056221006897
ETIM 8:EC001023 - Shunt release (for power circuit breaker)
ETIM 9:EC001023 - Shunt release (for power circuit breaker)
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1SDC210099D0206 | |
| EAN | 8056221006897 |
| ETIM 8 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| eClass | V11.1 : 27370418 |
| Release | Ekip Hi-Touch LSIG |
| Standards | IEC60947-2 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Current Type | AC |
| Product Name | Accessory |
| Product Type | Accessory |
| Release Type | EL |
| Suitable For | XT5 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Order Multiple | 1 piece |
| Number of Poles | 3 |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | Accessories for Tmax XT |
| REACH Declaration | 9AKK108466A1425 |
| Configuration Type | Loose or configurable |
| Product Net Weight | 1.395 kg |
| Rated Current (In) | 630 A |
| Package Level 1 EAN | 8056221006897 |
| Customs Tariff Number | 85389099 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 120 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 180 mm |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Instructions and Manuals | 1SDH002039A1002 |
| Environmental Information | 9AKK108467A6707 |
| Object Classification Code | Q |
| Package Level 1 Gross Weight | 1.559 kg |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Package Level 1 Depth / Length | 225 mm |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Circuit Breaker Type to be Associated | Power Distribution |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
