1SDA073017R1

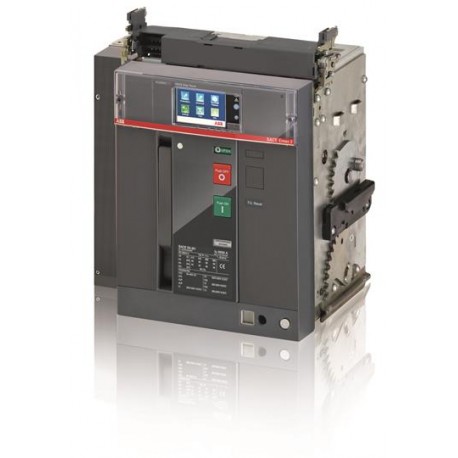

E2.2N2000 1SDA073017R1 ABB E2.2N 2000 Ekip G Touch LSIG 4p WMP
$0.00USD
4067 in stock
Key Specifications
EAN::8015644768676
Customs Tariff Number::85362090
Minimum Order Quantity::1 piece
Product Net Width: (Ordering):407 mm
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN: | 8015644768676 |
| Customs Tariff Number: | 85362090 |
| Minimum Order Quantity: | 1 piece |
| Product Net Width: (Ordering) | 407 mm |
| Product Net Height: (Ordering) | 425 mm |
| Product Net Weight: (Ordering) | 49 kg |
| Version: (Container Information) | W |
| Package Level 1 EAN: (Dimensions) | 8015644768676 |
| Sub-type: (Container Information) | E2.2 |
| Standards: (Container Information) | IEC |
| Package Level 1 Units: (Dimensions) | 1 piece |
| Package Level 1 Width: (Dimensions) | 515 mm |
| Power Loss: (Container Information) | 450 W |
| Package Level 1 Height: (Dimensions) | 610 mm |
| Current Type: (Container Information) | AC |
| Product Name: (Container Information) | Air Circuit Breaker |
| Product Type: (Container Information) | Air Circuit Breaker |
| Release Type: (Container Information) | EL |
| Product Net Depth / Length: (Ordering) | 383 mm |
| Number of Poles: (Container Information) | 4 |
| Package Level 1 Gross Weight: (Dimensions) | 60 kg |
| Product Main Type: (Container Information) | SACE Emax 2 |
| Rated Current (In): (Container Information) | 2000 A |
| Rated Voltage (Ur): (Container Information) | 690 V |
| Package Level 1 Depth / Length: (Dimensions) | 615 mm |
| Electrical Durability: (Container Information) | Ue =< 440 V 10000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour |
| Mechanical Durability: (Container Information) | 25000 cycle60 cycles per hour |
| Instructions and Manuals: (Additional Information) | 1SDH001000R00021SDH001316R0002 |
| Rated Operational Voltage: (Container Information) | 690 V AC |
| Environmental Information: (Additional Information) | Not Available |
| Neutral Pole Current ([%Iu]): (Container Information) | 100 % |
| Rated Insulation Voltage (Ui): (Container Information) | AC 1000 V |
| Declaration of Conformity - CE: (Additional Information) | 1SDL000165R0020 |
| ETIM 4: (Certificates and Declarations (Document Number)) | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: (Certificates and Declarations (Document Number)) | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: (Certificates and Declarations (Document Number)) | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 7: (Certificates and Declarations (Document Number)) | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Rated Uninterrupted Current (Iu): (Container Information) | 2000 A |
| Data Sheet, Technical Information: (Additional Information) | 1SDC200023D0204 |
| Rated Impulse Withstand Voltage (Uimp): (Container Information) | acc. to IEC 60947-2 12 kV |
| WEEE Category: (Certificates and Declarations (Document Number)) | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Rated Short-time Withstand Current (Icw): (Container Information) | for 1 s 66 kAfor 3 s 50 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics): (Container Information) | (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA |
| Object Classification Code: (Certificates and Declarations (Document Number)) | Q |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): (Container Information) | (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics): (Container Information) | 100 % |
