1SDA071350R1

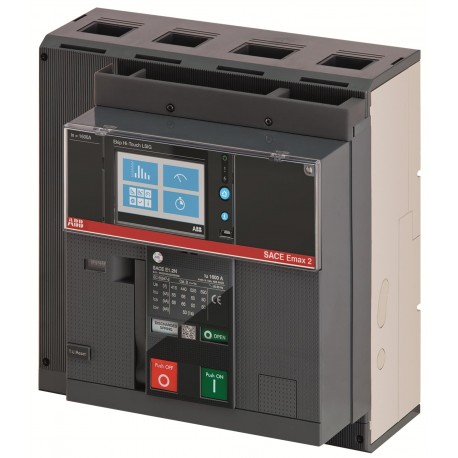

1SDA071350R1 ABB E1.2C 630 Ekip G Hi-Touch LSIG 4p F F
$0.00USD
4600 in stock
Key Specifications
:9AKK108468A3028
EAN:8015644752002
ETIM 8:EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9:EC000228 - Power circuit-breaker for trafo/generator/installation protection
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 9AKK108468A3028 | |
| EAN | 8015644752002 |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| UNSPSC | 39121615 |
| eClass | V11.1 : 27370409 |
| Release | Ekip G Hi-Touch LSIG |
| Version | F |
| Sub-type | E1.2 |
| Standards | IEC |
| Power Loss | 31 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Current Type | AC |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Release Type | EL |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Poles | 4 |
| ABB EcoSolutions | Yes |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | SACE Emax 2 |
| Product Net Width | 280 mm |
| REACH Declaration | 9AKK108466A1425 |
| Product Net Height | 296 mm |
| Product Net Weight | 16 kg |
| Rated Current (In) | 630 A |
| Rated Voltage (Ur) | 690 V |
| Package Level 1 EAN | 8015644752002 |
| Customs Tariff Number | 85362090 |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Mechanical Durability | 20000 cycle |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 350 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 350 mm |
| End of Life Instructions | 9AKK108468A2360 |
| Instructions and Manuals | 1SDH000999R0002 |
| Order Code US and Canada | ZACNEEBQ200A000000XX |
| Terminal Connection Type | Front |
| Environmental Information | 9AKK108467A6707 |
| Rated Operational Voltage | 690 V AC |
| Object Classification Code | Q |
| Product Net Depth / Length | 183 mm |
| Neutral Pole Current ([%Iu]) | 100 % |
| Package Level 1 Gross Weight | 18 kg |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Package Level 1 Depth / Length | 330 mm |
| Short-Circuit Performance Level | C |
| Rated Uninterrupted Current (Iu) | 630 A |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Environmental Product Declaration - EPD | 9AKK108468A1900 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 -76.4 % |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 50 kA |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
