1SDA069829R1

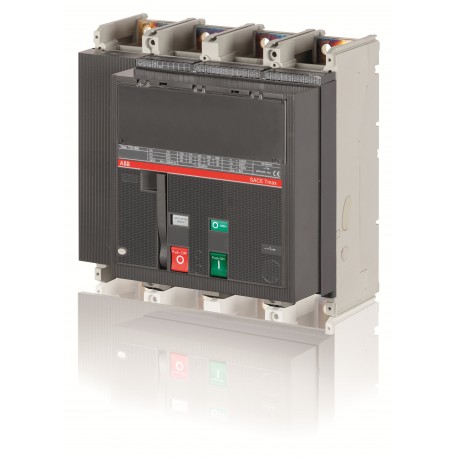

1SDA069829R1 ABB T7D1600 4P F F 1100VDC M PV
$0.00USD
4062 in stock
Key Specifications
:9AKK108467A6707
EAN:8015644706111
SCIP:d520a4d2-5de3-4a2f-9794-d24a903e5c61 Italy (IT)
ETIM 7:EC000216 - Switch disconnector
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 9AKK108467A6707 | |
| EAN | 8015644706111 |
| SCIP | d520a4d2-5de3-4a2f-9794-d24a903e5c61 Italy (IT) |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| Version | F |
| Sub-type | T7 |
| Standards | IEC |
| Power Loss | at Rated Operating Conditions per Pole 77 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Current Type | DC |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Suitable For | T7M |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Poles | 4 |
| Simplified SCIP | d11ca669-382f-434e-93bc-d56b047ed8a8 Germany (DE) |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | SACE Tmax T |
| Product Net Width | 280 mm |
| REACH Declaration | 9AKK108466A1425 |
| Product Net Height | 268 mm |
| Product Net Weight | 12.5 kg |
| Rated Current (In) | 1600 A |
| Rated Voltage (Ur) | 1100 V DC |
| Package Level 1 EAN | 8015644706111 |
| Customs Tariff Number | 85352100 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 350 mm |
| Instructions and Manuals | 1SDH000789R0002 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Environmental Information | 9AKK10103A1059 |
| Rated Operational Voltage | 1100 V DC |
| Product Net Depth / Length | 178 mm |
| Package Level 1 Gross Weight | 14 kg |
| Rated Insulation Voltage (Ui) | 1100 V DC |
| Declaration of Conformity - CE | 9AKK106713A9778 |
| Package Level 1 Depth / Length | 360 mm |
| Short-Circuit Performance Level | D |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 19.2 kA |
Product Description
T7D/PV 1600 4p F F M 1100V DC
