1SDA069064R1

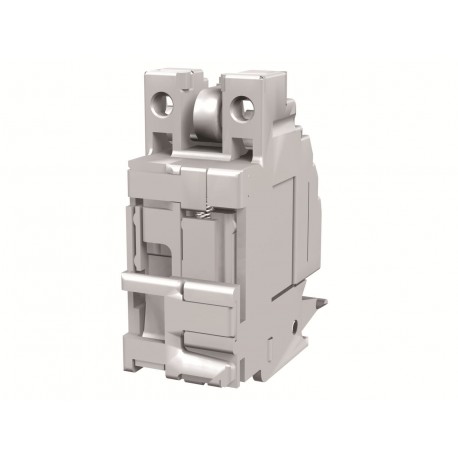

1SDA069064R1 ABB UVR MINIMA COIL 48VAC/DC XT1/4
$0.00USD
3147 in stock
Key Specifications
:48 V DC
EAN:8015644697600
ETIM 7:EC001022 - Under voltage coil
ETIM 8:EC001022 - Under voltage coil
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 48 V DC | |
| EAN | 8015644697600 |
| ETIM 7 | EC001022 - Under voltage coil |
| ETIM 8 | EC001022 - Under voltage coil |
| ETIM 9 | EC001022 - Under voltage coil |
| UNSPSC | 39121010 |
| eClass | V11.1 : 27370417 |
| Standards | IEC60947-2 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Current Type | AC/DC |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT1, XT2, XT3, XT4 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Order Multiple | 1 piece |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | Accessories for Tmax XT |
| REACH Declaration | 9AKK108466A1425 |
| Configuration Type | Loose or configurable |
| Product Net Weight | 0.123 kg |
| Rated Voltage (Ur) | 48 V AC |
| Package Level 1 EAN | 8015644697600 |
| Customs Tariff Number | 85389099 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 110 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 60 mm |
| Instructions and Manuals | 1SDH000719R0502 |
| Order Code US and Canada | KXTAUVR2 |
| Environmental Information | 9AKK108467A6707 |
| Object Classification Code | Q |
| Suitable for Product Class | SACE Tmax XT |
| Package Level 1 Gross Weight | 0.129 kg |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Package Level 1 Depth / Length | 140 mm |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| IDEA Granular Category Code (IGCC) | 4148 >> Under voltage coil |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
UVR XT1..XT4 48 Vac/dc
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
