1SDA068253R1

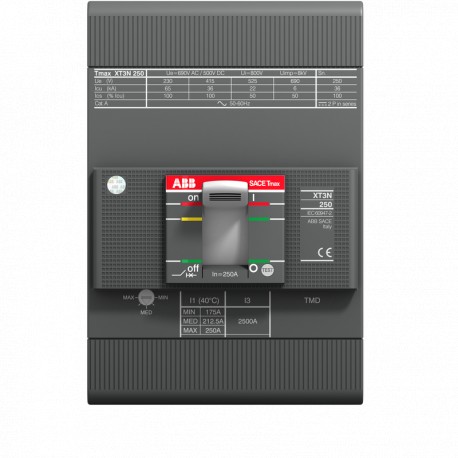

1SDA068253R1 ABB XT3N250 TMG R100 Im400 3P F F
$0.00USD
3886 in stock
Key Specifications
:9AKK108468A7794
EAN:8015644021597
ETIM 8:EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9:EC000228 - Power circuit-breaker for trafo/generator/installation protection
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 9AKK108468A7794 | |
| EAN | 8015644021597 |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| UNSPSC | 39120000 |
| eClass | V11.1 : 27370409 |
| Release | TMG |
| Version | F |
| Sub-type | XT3 |
| Standards | IEC60947-2 |
| Power Loss | at Rated Operating Conditions per Pole 5.6 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Current Type | AC/DC |
| Opening Time | CB with SOR 15 ms |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Release Type | TM |
| Setting Range | 70...100 A |
| Terminal Type | Bolt |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| GL Certificate | 1SDL000163R0094 |
| LR Certificate | 1SDL000163R0100 |
| Order Multiple | 1 piece |
| UL Certificate | No certification needed |
| Wiring Diagram | 1SDM000068R0001 |
| Number of Poles | 3 |
| VDE Certificate | No certification needed |
| ABB EcoSolutions | Yes |
| ATEX Certificate | No certification needed |
| RoHS Information | 9AKK108466A1424 |
| Dimension Diagram | 1SDH000720R0100 |
| Product Main Type | SACE Tmax XT |
| Product Net Width | 105 mm |
| REACH Declaration | 9AKK108466A1425 |
| Tightening Torque | 8 N·m |
| Product Net Height | 150 mm |
| Product Net Weight | 1.7 kg |
| Rated Current (In) | 100 A |
| Rated Voltage (Ur) | 690 V |
| Mechanical Drawings | 1SDH000720R0100 |
| Package Level 1 EAN | 8015644021597 |
| Rated Frequency (f) | 50 / 60 Hz |
| Customs Tariff Number | 85362090 |
| Electrical Durability | 120 cycles per hour |
| Mechanical Durability | 240 cycles per hour |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 155 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 190 mm |
| CAD Dimensional Drawing | 1SDH001295R0409 |
| End of Life Instructions | 9AKK108468A2350 |
| Instructions and Manuals | 1SDH000720R0001 |
| Order Code US and Canada | XT3NE3100NFF000XXX |
| Recommended Screw Driver | Main Circuit M8 |
| Terminal Connection Type | Front |
| Environmental Information | 9AKK108467A6707 |
| Rated Operational Voltage | 690 V AC |
| Object Classification Code | Q |
| Product Net Depth / Length | 70 mm |
| Package Level 1 Gross Weight | 1.7 kg |
| Rated Insulation Voltage (Ui) | 800 V |
| Declaration of Conformity - CE | 9AKK106713A5530 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Package Level 1 Depth / Length | 155 mm |
| Short-Circuit Performance Level | N |
| Connecting Capacity Main Circuit | Busbar 85..192 mm² |
| Rated Uninterrupted Current (Iu) | 250 A |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Circuit Breaker Type to be Associated | Generator Protection |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Environmental Product Declaration - EPD | 9AKK108468A2294 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 -56.6 % |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 50 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 400 A |
Product Description
XT3N 250 TMG 100-400 3p F F
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
