1SDA068194R1

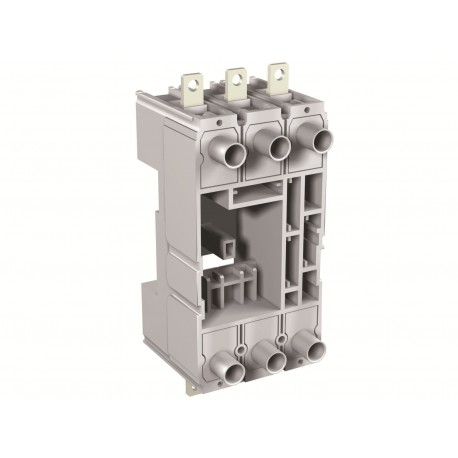

1SDA068194R1 ABB XT3 P FP 4p EF
$0.00USD
4609 in stock
Key Specifications
:e7aa4257-bf46-41c6-bc49-07089edd26a0 Sweden (SE)
EAN:8015644020903
SCIP:afb69e4a-f47d-4543-9b14-1aeb1d43e90a Italy (IT)
ETIM 7:EC002043 - Chassis part power circuit breaker
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| e7aa4257-bf46-41c6-bc49-07089edd26a0 Sweden (SE) | |
| EAN | 8015644020903 |
| SCIP | afb69e4a-f47d-4543-9b14-1aeb1d43e90a Italy (IT) |
| ETIM 7 | EC002043 - Chassis part power circuit breaker |
| ETIM 8 | EC002043 - Chassis part power circuit breaker |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27370422 |
| Version | P |
| Sub-type | XT3 |
| Standards | IEC60947-2 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Product Name | Accessory |
| Product Type | Fixed Part |
| Suitable For | XT3 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Order Multiple | 1 piece |
| Number of Poles | 4 |
| Simplified SCIP | fcb9d2f1-a92d-4ebd-bb93-aabd72ea6fa0 Germany (DE) |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | Accessories for Tmax XT |
| REACH Declaration | 9AKK108466A1425 |
| Configuration Type | Loose or configurable |
| E-Number (Finland) | 3641031 |
| Product Net Weight | 1.32 kg |
| Package Level 1 EAN | 8015644020903 |
| Rated Frequency (f) | 50 / 60 Hz |
| Customs Tariff Number | 85389099 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 120 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 180 mm |
| Instructions and Manuals | 1SDH000720R0005 |
| Order Code US and Canada | KXT3PFPEF-4 |
| Terminal Connection Type | Plug-In Circuit-Breakers |
| Environmental Information | 9AKK108467A6707 |
| Rated Operational Voltage | 690 V AC |
| Object Classification Code | Q |
| Suitable for Product Class | SACE Tmax XT |
| Package Level 1 Gross Weight | 1.47 kg |
| Rated Insulation Voltage (Ui) | 800 V |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Package Level 1 Depth / Length | 225 mm |
| Rated Uninterrupted Current (Iu) | 250 A |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
4P THERMAL PLUG-IN BASE. EF P FP-XT3
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
