1SDA067058R1

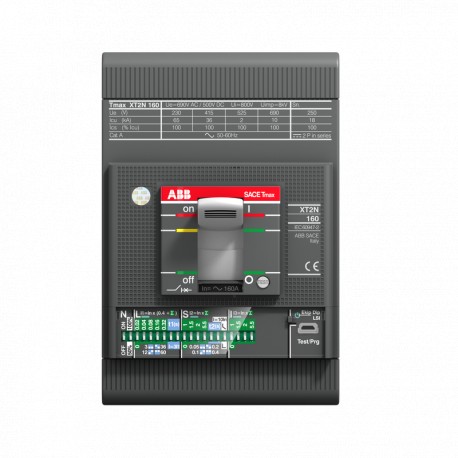

1SDA067058R1 ABB XT2N 160 Ekip LS/I In 160A 3p F F
$0.00USD
4247 in stock
Key Specifications
:9AKK108468A1897
EAN:8015644007959
SCIP:b90612d8-2735-48c0-a56d-dc45be673814 Italy (IT)
ETIM 7:EC000228 - Power circuit-breaker for trafo/generator/installation protection
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 9AKK108468A1897 | |
| EAN | 8015644007959 |
| SCIP | b90612d8-2735-48c0-a56d-dc45be673814 Italy (IT) |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| UNSPSC | 39121616 |
| eClass | V11.1 : 27370409 |
| Release | Ekip Dip LS/I |
| Version | F |
| Sub-type | XT2 |
| RoHS Date | NA |
| Standards | IEC60947-2 |
| Power Loss | at Rated Operating Conditions per Pole 10.8 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Current Type | AC |
| Opening Time | CB with SOR 15 ms |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Release Type | EL |
| Brand / Label | ABB |
| Terminal Type | Bolt |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| BV Certificate | 1SDL000163R0099 |
| CB Certificate | 9AKK106713A2843 |
| GL Certificate | 1SDL000163R0093 |
| KC Certificate | HW05022-15105 |
| LR Certificate | 1SDL000163R0100 |
| Order Multiple | 1 piece |
| UL Certificate | 1SDL000163R0112 |
| Wiring Diagram | 1SDM000068R0001 |
| ABS Certificate | 1SDL000163R0109 |
| CQC Certificate | CQC2013010307643219 |
| EAC Certificate | 9AKK10103A1027 |
| Number of Poles | 3 |
| Simplified SCIP | 83bd7a2a-eec9-46f1-b3c9-2121e7990084 Germany (DE) |
| VDE Certificate | No certification needed |
| ABB EcoSolutions | Yes |
| ATEX Certificate | No certification needed |
| RINA Certificate | 1SDL000163R0098 |
| RoHS Information | 9AKK108466A1424 |
| Dimension Diagram | 1SDH000721R0100 |
| E-Number (Sweden) | 3182027 |
| Product Main Type | SACE Tmax XT |
| Product Net Width | 90 mm |
| REACH Declaration | 9AKK108466A1425 |
| Tightening Torque | 6 N·m |
| DNV GL Certificate | 1SDL000163R0096 |
| E-Number (Finland) | 3638188 |
| Product Net Height | 130 mm |
| Product Net Weight | 1.4 kg |
| Rated Current (In) | 160 A |
| Rated Voltage (Ur) | 690 V |
| I²t Characteristic | 1SDC210099D0206 |
| Mechanical Drawings | 1SDH000721R0100 |
| Package Level 1 EAN | 8015644007959 |
| Package Level 2 EAN | 8015644007959 |
| Rated Frequency (f) | 50 / 60 Hz |
| Customs Tariff Number | 85362090 |
| Electrical Durability | 120 cycles per hour |
| Mechanical Durability | 240 cycles per hour |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 208 mm |
| CAD Dimensional Drawing | 1SDH002230A1001 |
| End of Life Instructions | 9AKK108468A2349 |
| Instructions and Manuals | 1SDH000721R0001 |
| Order Code US and Canada | XT2NE3160EFF000XXX |
| Recommended Screw Driver | Main Circuit M6 |
| Terminal Connection Type | Front |
| Environmental Information | 9AKK108467A6707 |
| Rated Operational Voltage | 690 V AC |
| Object Classification Code | Q |
| Product Net Depth / Length | 82.5 mm |
| Package Level 1 Gross Weight | 1.71 kg |
| Rated Insulation Voltage (Ui) | 1000 V |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Package Level 1 Depth / Length | 145 mm |
| Declaration of Conformity - CCC | 9AKK108466A7755 |
| Short-Circuit Performance Level | N |
| Connecting Capacity Main Circuit | Busbar 32.5..100 mm² |
| Rated Uninterrupted Current (Iu) | 160 A |
| Data Sheet, Technical Information | SDC210100D0206 |
| IDEA Granular Category Code (IGCC) | 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Circuit Breaker Type to be Associated | Power Distribution |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Environmental Product Declaration - EPD | 9AKK108469A1855 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 -55.70 % |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
Product Description
XT2N160 Ekip LS/I R160 3P F F
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
