In Stock Hot Product
1SDA066393R1

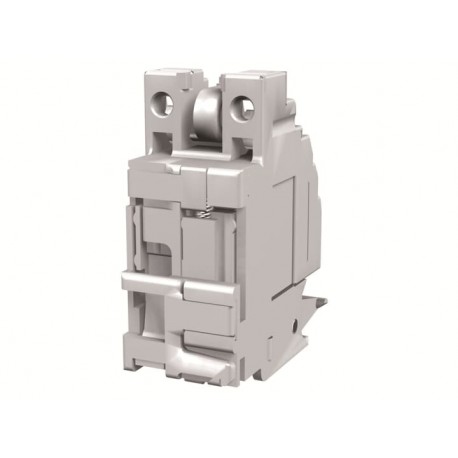

1SDA066393R1 ABB UNDERVOLTAGE RELEASE 380...440V AC XT1..XT4
$0.00USD
4854 in stock
Key Specifications
EAN::8015644003036
Customs Tariff Number::85389099
Minimum Order Quantity::1 piece
Product Net Width: (Ordering):110 mm
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN: | 8015644003036 |
| Customs Tariff Number: | 85389099 |
| Minimum Order Quantity: | 1 piece |
| Product Net Width: (Ordering) | 110 mm |
| Product Net Height: (Ordering) | 60 mm |
| Product Net Weight: (Ordering) | 0,115 kg |
| Package Level 1 EAN: (Dimensions) | 8015644003036 |
| Standards: (Container Information) | IEC 60947-2 |
| Package Level 1 Units: (Dimensions) | 1 piece |
| Package Level 1 Width: (Dimensions) | 110 mm |
| Package Level 1 Height: (Dimensions) | 60 mm |
| Current Type: (Container Information) | AC |
| Product Name: (Container Information) | Accessory |
| Product Type: (Container Information) | ACC |
| Suitable For: (Container Information) | XT1, XT2, XT3, XT4 |
| Product Net Depth / Length: (Ordering) | 140 mm |
| Order Multiple: (Container Information) | 1 piece |
| Package Level 1 Gross Weight: (Dimensions) | 0,121 kg |
| Product Main Type: (Container Information) | Accessories for Tmax XT |
| Configuration Type: (Container Information) | Loose or configurable |
| Rated Voltage (Ur): (Container Information) | 380 ... 440 V AC |
| Package Level 1 Depth / Length: (Dimensions) | 140 mm |
| Instructions and Manuals: (Additional Information) | 1SDH000719R0502 |
| Suitable for Product Class: (Container Information) | SACE Tmax XT |
| ETIM 6: (Certificates and Declarations (Document Number)) | EC001022 - Under voltage coil |
| ETIM 7: (Certificates and Declarations (Document Number)) | EC001022 - Under voltage coil |
| UNSPSC: (Certificates and Declarations (Document Number)) | 39120000 |
| Data Sheet, Technical Information: (Additional Information) | 1SDC210100D02011SDC210033D0204 |
| WEEE Category: (Certificates and Declarations (Document Number)) | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Object Classification Code: (Certificates and Declarations (Document Number)) | Q |
