1SDA066268R1

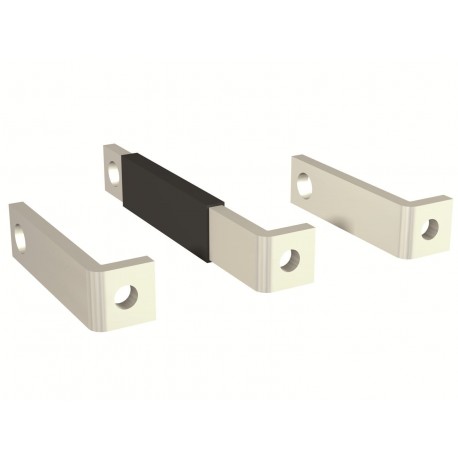

1SDA066268R1 ABB KIT R FP XT1 3pcs
$0.00USD
4463 in stock
Key Specifications
:UL489
EAN:8015644001780
ETIM 7:EC002019 - Connection vane/phase spreader
ETIM 8:EC002019 - Connection vane/phase spreader
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| UL489 | |
| EAN | 8015644001780 |
| ETIM 7 | EC002019 - Connection vane/phase spreader |
| ETIM 8 | EC002019 - Connection vane/phase spreader |
| ETIM 9 | EC002019 - Connection vane/phase spreader |
| UNSPSC | 39121432 |
| eClass | V11.1 : 27371305 |
| Standards | IEC60947-2 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT1 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Order Multiple | 1 piece |
| Number of Poles | 3 |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | Accessories for Tmax XT |
| REACH Declaration | 9AKK108466A1425 |
| Configuration Type | Loose or configurable |
| Product Net Weight | 0.2 kg |
| Package Level 1 EAN | 8015644001780 |
| Customs Tariff Number | 85389099 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 85 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 66 mm |
| Instructions and Manuals | 1SDH000719R0813 |
| Order Code US and Canada | KXT1ERFP-3 |
| Terminal Connection Type | Rear Orientated |
| Environmental Information | 9AKK108467A6707 |
| Object Classification Code | Q |
| Suitable for Product Class | SACE Tmax XT |
| Package Level 1 Gross Weight | 0.2 kg |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Package Level 1 Depth / Length | 116 mm |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| IDEA Granular Category Code (IGCC) | 4603 >> Electrical terminals |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
R TERMINALS FOR FP 3P - XT1
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
