1SDA064749R1

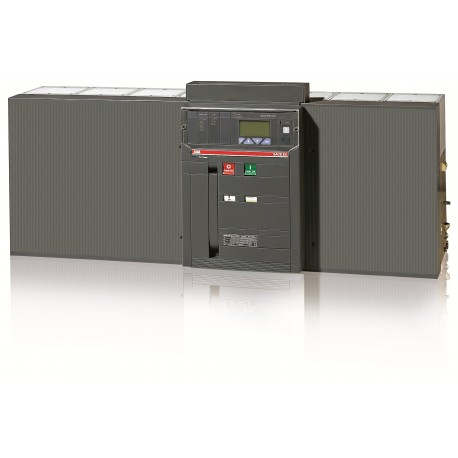

1SDA064749R1 ABB E6H/f 5000 PR123/DC 4P F VR
$0.00USD
4333 in stock
Key Specifications
:60 cycles per hour
EAN:8015644676421
ETIM 7:EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8:EC000228 - Power circuit-breaker for trafo/generator/installation protection
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 60 cycles per hour | |
| EAN | 8015644676421 |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| eClass | V11.1 : 27370409 |
| Release | PR123/DC |
| Version | F |
| Sub-type | E6 |
| Standards | IEC |
| Power Loss | 700 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Current Type | DC |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Release Type | EL |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Number of Poles | 4 / f |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | SACE Emax |
| Product Net Width | 1034 mm |
| REACH Declaration | 9AKK108466A1425 |
| Product Net Height | 418 mm |
| Product Net Weight | 135 kg |
| Rated Current (In) | 5000 A |
| Rated Voltage (Ur) | 1000 V |
| Package Level 1 EAN | 8015644609139 |
| Customs Tariff Number | 85362090 |
| Electrical Durability | Ue = 1000 V 2000 cycle |
| Mechanical Durability | 12000 cycle |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 600 mm |
| Instructions and Manuals | 1SDH000635R0002 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Environmental Information | 9AKK10103A6076 |
| Rated Operational Voltage | 1000 V DC |
| Product Net Depth / Length | 302 mm |
| Rated Insulation Voltage (Ui) | 1000 V |
| Declaration of Conformity - CE | 1SDL000165R0017 |
| Package Level 1 Depth / Length | 1257 mm |
| Rated Operational Current (Ie) | 5000 A |
| Short-Circuit Performance Level | H |
| Rated Uninterrupted Current (Iu) | 5000 A |
| Data Sheet, Technical Information | 1SDC200012D0202 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (750 V DC) 65 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (750 V DC) 65 kA |
Product Description
E6H/f 5000 PR123/DC In=5000A 4p F VR
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
