1SDA062114R1

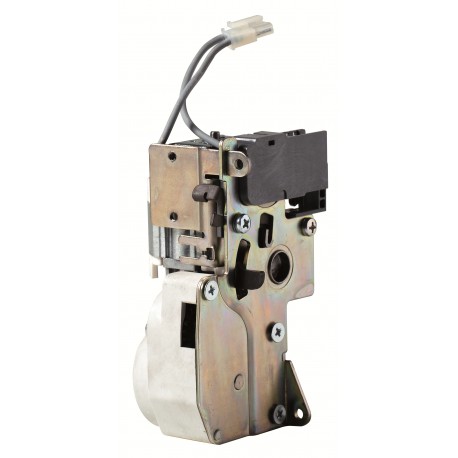

1SDA062114R1 ABB GEARED MOTOR DEVICE T7M-X1 48...60Vac/dc
$0.00USD
4923 in stock
Key Specifications
:48 ... 60 V DC
EAN:8015644646547
ETIM 7:EC001030 - Motor operator for power circuit-breaker
ETIM 8:EC001030 - Motor operator for power circuit-breaker
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 48 ... 60 V DC | |
| EAN | 8015644646547 |
| ETIM 7 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 8 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 9 | EC001030 - Motor operator for power circuit-breaker |
| UNSPSC | 39121100 |
| eClass | V11.1 : 27370412 |
| Standards | IEC |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Current Type | AC/DC |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T7, X1 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | Accessories for Tmax T |
| REACH Declaration | 9AKK108466A1425 |
| Configuration Type | Loose or configurable |
| Product Net Weight | 1 kg |
| Rated Voltage (Ur) | 48 ... 60 V AC |
| Package Level 1 EAN | 8015644646547 |
| Customs Tariff Number | 85389099 |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 130 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 80 mm |
| Instructions and Manuals | 1SDH000529R0621 |
| Order Code US and Canada | KT7MXM7 |
| Environmental Information | 9AKK108467A6707 |
| Object Classification Code | Q |
| Suitable for Product Class | SACE Emax |
| Package Level 1 Gross Weight | 2.3 kg |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Package Level 1 Depth / Length | 200 mm |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
MOTOR CONTROL 48-60VAC/DC - T7M-X1
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
