1SDA062038R1

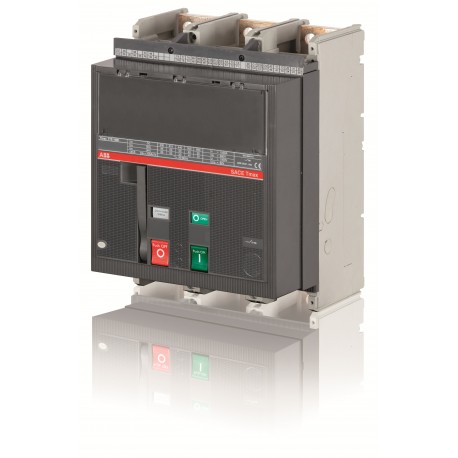

1SDA062038R1 ABB T7D 1250 3p F F M
$0.00USD
3524 in stock
Key Specifications
:9AKK108467A6707
EAN:8015644645762
SCIP:62b631ef-fee9-4cd1-bf96-83e9e98c8ee3 Italy (IT)
ETIM 7:EC000216 - Switch disconnector
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 9AKK108467A6707 | |
| EAN | 8015644645762 |
| SCIP | 62b631ef-fee9-4cd1-bf96-83e9e98c8ee3 Italy (IT) |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39120000 |
| eClass | V11.1 : 27371403 |
| Version | F |
| Sub-type | T7 |
| Standards | IEC |
| Power Loss | at Rated Operating Conditions per Pole 47 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Suitable For | T7M |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Poles | 3 |
| Simplified SCIP | 23ccd8d1-73d0-4bfc-aa96-30e4f9c41852 Germany (DE) |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | SACE Tmax T |
| Product Net Width | 210 mm |
| REACH Declaration | 9AKK108466A1425 |
| Product Net Height | 268 mm |
| Product Net Weight | 11 kg |
| Package Level 1 EAN | 8015644645762 |
| Customs Tariff Number | 85362090 |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 280 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 350 mm |
| Instructions and Manuals | 1SDC210015D0201 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Environmental Information | 9AKK10103A1059 |
| Rated Operational Voltage | 690 V AC |
| Object Classification Code | Q |
| Product Net Depth / Length | 178 mm |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Package Level 1 Gross Weight | 12.5 kg |
| Declaration of Conformity - CE | 9AKK106713A5537 |
| Package Level 1 Depth / Length | 360 mm |
| Short-Circuit Performance Level | D |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 A |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
