In Stock Hot Product
1SDA059076R1

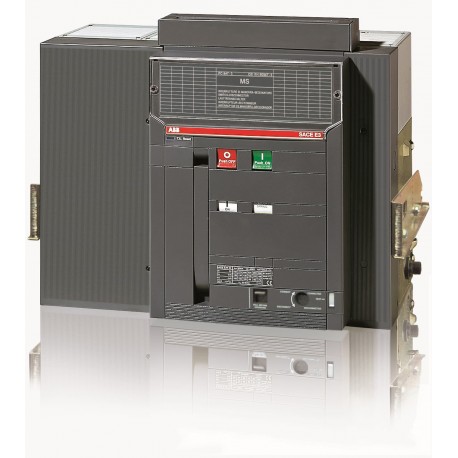

1SDA059076R1 ABB E3H/E MS 2000 4P W MP 1000VDC
$0.00USD
3072 in stock
Key Specifications
:20 cycles per hour
EAN:8015644614355
ETIM 7:EC000216 - Switch disconnector
ETIM 8:EC000216 - Switch disconnector
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 20 cycles per hour | |
| EAN | 8015644614355 |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| Version | W |
| Sub-type | E3 |
| Standards | IEC |
| Power Loss | 225 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Current Type | DC |
| Product Name | Switch Disconnector |
| Product Type | Air Circuit Breaker |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Number of Poles | 4 |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | SACE Emax |
| Product Net Width | 558 mm |
| REACH Declaration | 9AKK108466A1425 |
| Product Net Height | 461 mm |
| Product Net Weight | 81 kg |
| Rated Current (In) | 2000 A |
| Rated Voltage (Ur) | 1000 V |
| Package Level 1 EAN | 8015644609139 |
| Customs Tariff Number | 85362090 |
| Electrical Durability | 9000 cycle |
| Mechanical Durability | 20000 cycle |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 600 mm |
| Instructions and Manuals | 1SDH000635R0002 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Environmental Information | 9AKK10103A6076 |
| Rated Operational Voltage | 1000 V DC |
| Object Classification Code | Q |
| Product Net Depth / Length | 396.5 mm |
| Package Level 1 Gross Weight | 96 kg |
| Rated Insulation Voltage (Ui) | 1000 V |
| Declaration of Conformity - CE | 1SDL000165R0015 |
| Package Level 1 Depth / Length | 785 mm |
| Rated Operational Current (Ie) | 2000 A |
| Short-Circuit Performance Level | H |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Data Sheet, Technical Information | 1SDC200012D0202 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 40 kA |
Product Description
E3H/E MS 2000 4p 1000V DCW MP new
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
