1SDA056292R1

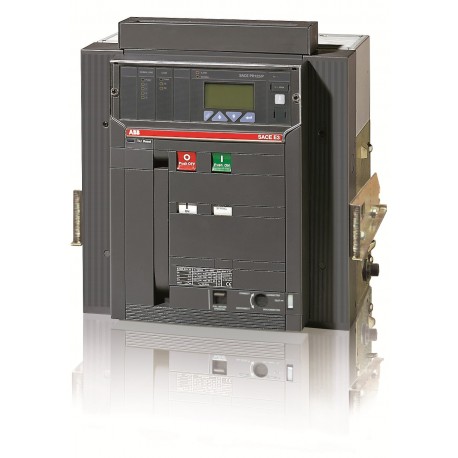

1SDA056292R1 ABB E3S 2500 PR122/P-LSI In 2500A 3p W MP
$0.00USD
4181 in stock
Key Specifications
:Ue = 500 ... 690 V 7000 cycle
EAN:8015644576325
ETIM 7:EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8:EC000228 - Power circuit-breaker for trafo/generator/installation protection
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Ue = 500 ... 690 V 7000 cycle | |
| EAN | 8015644576325 |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| UNSPSC | 39120000 |
| Release | PR122/P-LSI |
| Version | W |
| Sub-type | E3 |
| Standards | IEC |
| Power Loss | 350 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Current Type | AC |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Release Type | EL |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Poles | 3 |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | SACE Emax |
| Product Net Width | 432 mm |
| REACH Declaration | 9AKK108466A1425 |
| Product Net Height | 461 mm |
| Product Net Weight | 64 kg |
| Rated Current (In) | 2500 A |
| Rated Voltage (Ur) | 690 V |
| Package Level 1 EAN | 8015644576325 |
| Customs Tariff Number | 85362090 |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Mechanical Durability | 20000 cycle |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 600 mm |
| Instructions and Manuals | 1SDH000460R0002 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Environmental Information | 9AKK10103A6076 |
| Rated Operational Voltage | 690 V AC |
| Object Classification Code | Q |
| Product Net Depth / Length | 396.5 mm |
| Package Level 1 Gross Weight | 77 kg |
| Rated Insulation Voltage (Ui) | 1000 V |
| Declaration of Conformity - CE | 1SDL000165R0015 |
| Package Level 1 Depth / Length | 615 mm |
| Rated Operational Current (Ie) | 2500 A |
| Short-Circuit Performance Level | S |
| Rated Uninterrupted Current (Iu) | 2500 A |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 75 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 75 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 75 kA |
Product Description
E3S2500 PR122/P LSI 3P W MP
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
