1SDA055578R1

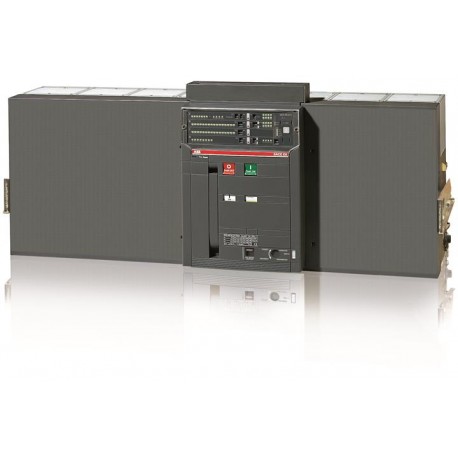

E6H/f 5000 PR121/P LSIG 4P W MP 1SDA055578R1 ABB SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E6H 5000A/F FULL ..
$0.00USD
3867 in stock
Key Specifications
EAN::8015644569181
Customs Tariff Number::85362090
Minimum Order Quantity::1 piece
Product Net Width: (Ordering):1062 mm
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN: | 8015644569181 |
| Customs Tariff Number: | 85362090 |
| Minimum Order Quantity: | 1 piece |
| Product Net Width: (Ordering) | 1062 mm |
| Product Net Height: (Ordering) | 461 mm |
| Product Net Weight: (Ordering) | 135 kg |
| Version: (Container Information) | W |
| Package Level 1 EAN: (Dimensions) | 8015644569181 |
| Sub-type: (Container Information) | E6 |
| Standards: (Container Information) | IEC |
| Package Level 1 Units: (Dimensions) | 1 piece |
| Package Level 1 Width: (Dimensions) | 515 mm |
| Power Loss: (Container Information) | 700 W |
| Package Level 1 Height: (Dimensions) | 600 mm |
| Current Type: (Container Information) | AC |
| Product Name: (Container Information) | Air Circuit Breaker |
| Product Type: (Container Information) | Air Circuit Breaker |
| Release Type: (Container Information) | EL |
| Product Net Depth / Length: (Ordering) | 396.5 mm |
| Number of Poles: (Container Information) | 4 / f |
| Package Level 1 Gross Weight: (Dimensions) | 161 kg |
| Product Main Type: (Container Information) | SACE Emax |
| Rated Current (In): (Container Information) | 5000 A |
| Rated Voltage (Ur): (Container Information) | 690 V |
| Package Level 1 Depth / Length: (Dimensions) | 1257 mm |
| Electrical Durability: (Container Information) | Ue =< 440 V 3000 cycleUe = 500 ... 690 V 2000 cycle10 cycles per hour |
| Mechanical Durability: (Container Information) | 12000 cycle60 cycles per hour |
| Terminal Connection Type: (Container Information) | Withdrawable Circuit-Breakers |
| Instructions and Manuals: (Additional Information) | 1SDH000460R0002 |
| Rated Operational Voltage: (Container Information) | 690 V AC |
| Environmental Information: (Additional Information) | 1SDL000145R0 |
| Rated Insulation Voltage (Ui): (Container Information) | 1000 V |
| Rated Operational Current (Ie): (Container Information) | 5000 A |
| Declaration of Conformity - CE: (Additional Information) | 1SDL000165R0017 |
| ETIM 4: (Certificates and Declarations (Document Number)) | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: (Certificates and Declarations (Document Number)) | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: (Certificates and Declarations (Document Number)) | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| Rated Uninterrupted Current (Iu): (Container Information) | 5000 A |
| Data Sheet, Technical Information: (Additional Information) | 1SDC200006D0209 |
| Rated Impulse Withstand Voltage (Uimp): (Container Information) | 12 kV |
| WEEE Category: (Certificates and Declarations (Document Number)) | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Rated Short-time Withstand Current (Icw): (Container Information) | for 1 s 100 kAfor 3 s 85 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics): (Container Information) | (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 100 kA(660 V AC) 100 kA(690 V AC) 100 kA |
| Object Classification Code: (Certificates and Declarations (Document Number)) | Q |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): (Container Information) | (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 100 kA(660 V AC) 100 kA(690 V AC) 100 kA |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
