In Stock Hot Product
1SDA055017R1

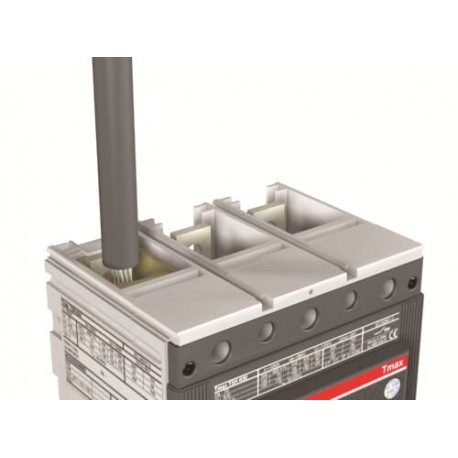

1SDA055017R1 ABB KIT FC Cu 1x240mm2 T5 400 4pcs
$0.00USD
3674 in stock
Key Specifications
:1SDC210300D0201
EAN:8015644561628
ETIM 7:EC002019 - Connection vane/phase spreader
ETIM 8:EC002019 - Connection vane/phase spreader
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1SDC210300D0201 | |
| EAN | 8015644561628 |
| ETIM 7 | EC002019 - Connection vane/phase spreader |
| ETIM 8 | EC002019 - Connection vane/phase spreader |
| ETIM 9 | EC002019 - Connection vane/phase spreader |
| UNSPSC | 39121100 |
| eClass | V11.1 : 27371305 |
| Standards | IEC |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T5 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Poles | 4 |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | Accessories for Tmax T |
| REACH Declaration | 9AKK108466A1425 |
| Configuration Type | Loose or configurable |
| E-Number (Finland) | 3655690 |
| Product Net Weight | 0.487 kg |
| Package Level 1 EAN | 8015644561628 |
| Customs Tariff Number | 85389099 |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 145 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 25 mm |
| Instructions and Manuals | 1SDH000436R0825 |
| Environmental Information | 9AKK108467A6707 |
| Object Classification Code | Q |
| Suitable for Product Class | SACE Tmax T |
| Package Level 1 Gross Weight | 0.5 kg |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Package Level 1 Depth / Length | 220 mm |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
FC Cu 1x240mm2 4UD - T5 400 TERMINALS
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
