1SDA054600R1

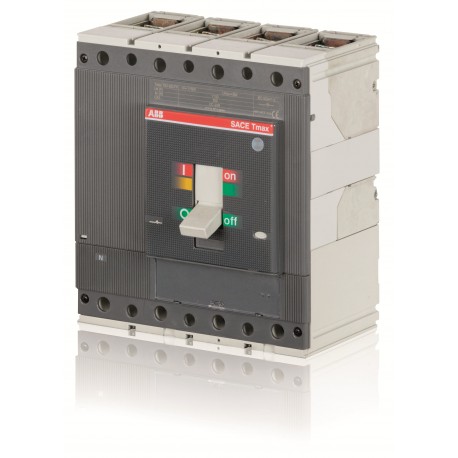

1SDA054600R1 ABB T5D 400 4p F F
$0.00USD
3761 in stock
Key Specifications
:9AKK108467A6707
EAN:8015644556983
SCIP:589159d5-0945-415f-8498-665412027854 Italy (IT)
ETIM 7:EC000216 - Switch disconnector
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 9AKK108467A6707 | |
| EAN | 8015644556983 |
| SCIP | 589159d5-0945-415f-8498-665412027854 Italy (IT) |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39121100 |
| eClass | V11.1 : 27371403 |
| Version | F |
| Sub-type | T5 |
| Standards | IEC |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Suitable For | T5 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Poles | 4 |
| Simplified SCIP | aa73c34b-fd1b-4137-853b-6aab5474bba0 Germany (DE) |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | SACE Tmax T |
| Product Net Width | 186 mm |
| REACH Declaration | 9AKK108466A1425 |
| E-Number (Finland) | 3655614 |
| Product Net Height | 205 mm |
| Product Net Weight | 5.472 kg |
| Package Level 1 EAN | 8015644556983 |
| Customs Tariff Number | 85362090 |
| Mechanical Durability | 20000 cycle |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 240 mm |
| Instructions and Manuals | 1SDH000437R0001 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Test Voltage Max (Utest) | 3000 V |
| Environmental Information | 9AKK10103A1056 |
| Rated Operational Voltage | 690 V AC |
| Object Classification Code | Q |
| Product Net Depth / Length | 103.5 mm |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Package Level 1 Gross Weight | 5.76 kg |
| Rated Insulation Voltage (Ui) | 1000 V |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| Package Level 1 Depth / Length | 285 mm |
| Short-Circuit Performance Level | D |
| Rated Uninterrupted Current (Iu) | 400 A |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Test Voltage at Industrial Frequency for 1 Minute | 3000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 6 A |
Product Description
T5D400 4P F F
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
