In Stock Hot Product
1SDA051357R1

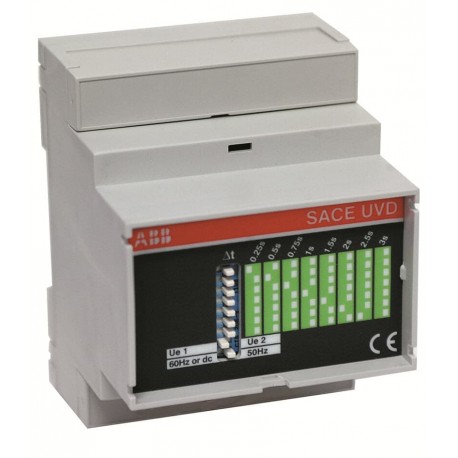

1SDA051357R1 ABB UVD T1..T6 XT1..XT4 24..30Va.c./d.c.
$0.00USD
4188 in stock
Key Specifications
:24 ... 30 V DC
EAN:8015644517786
ETIM 7:EC002052 - Time delay under voltage coil
ETIM 8:EC002052 - Time delay under voltage coil
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 24 ... 30 V DC | |
| EAN | 8015644517786 |
| ETIM 7 | EC002052 - Time delay under voltage coil |
| ETIM 8 | EC002052 - Time delay under voltage coil |
| ETIM 9 | EC002052 - Time delay under voltage coil |
| UNSPSC | 39120000 |
| eClass | V11.1 : 27370426 |
| Standards | IEC60947-2 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Current Type | AC/DC |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T1, T2, T3, T4, T5, T6, XT1, XT2, XT3, XT4 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Order Multiple | 1 piece |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | Accessories for Tmax XT |
| REACH Declaration | 9AKK108466A1425 |
| Configuration Type | Loose or configurable |
| Product Net Weight | 0.15 kg |
| Rated Voltage (Ur) | 24 ... 30 V AC |
| Package Level 1 EAN | 8015644517786 |
| Customs Tariff Number | 85389099 |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 105 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 95 mm |
| Instructions and Manuals | 1SDH000460R0616 |
| Order Code US and Canada | KT3UVD8 |
| Environmental Information | 9AKK108467A6707 |
| Object Classification Code | Q |
| Suitable for Product Class | SACE Tmax T |
| Package Level 1 Gross Weight | 0.25 kg |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Package Level 1 Depth / Length | 150 mm |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
UVD MINIMUM RETARDER 24-30VAC/DC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
