1SCA148596R1001

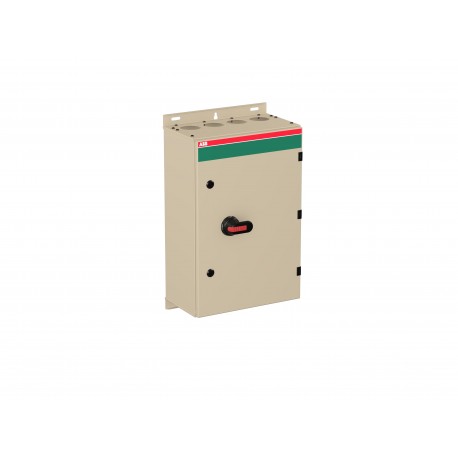

1SCA148596R1001 ABB OT160EVTRR3TZ EMC safety switch
$0.00USD
4483 in stock
Key Specifications
:(500 V) 160 A
ETIM 7:EC000216 - Switch disconnector
ETIM 8:EC000216 - Switch disconnector
ETIM 9:EC000216 - Switch disconnector (low voltage)
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (500 V) 160 A | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122205 |
| eClass | V11.1 : 27371403 |
| Standards | IEC 60947-1, -3 |
| Handle Type | Pistol handle |
| RoHS Status | Following EU Directive 2011/65/EU |
| Handle Color | Black |
| Neutral Type | No neutral terminal |
| Terminal Type | Bolt |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Enclosure Type | MSC |
| Number of Poles | 3 |
| Pollution Degree | 3 |
| RoHS Information | 1SCC340075D0201 |
| Country of Origin | Finland (FI) |
| E-Number (Norway) | 1429435 |
| E-Number (Sweden) | 3134563 |
| Product Net Width | 400 mm |
| REACH Declaration | 1SCC340076D0201 |
| Special Functions | EMC |
| Tightening Torque | Main Circuit 6 N·m |
| E-Number (Finland) | 3638798 |
| Enclosure Material | Steel sheet |
| Product Net Height | 600 mm |
| Product Net Weight | 19.91 kg |
| Mechanical Drawings | OTKM604023P4R.stp |
| Package Level 1 EAN | 6417019781273 |
| Cable Entry Position | Top/Bottom |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Customs Tariff Number | 85363090 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Cable Outlets Per Side | 4xring-flange / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 325 mm |
| Impact Resistance Rating | Housing IK09 |
| Instructions and Manuals | 1SCC340005M0007 |
| Recommended Screw Driver | Main Circuit M8 |
| Rated Operational Voltage | Main Circuit 1000 V |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Object Classification Code | Q |
| Position of Line Terminals | Top In - Bottom Out |
| Product Net Depth / Length | 230 mm |
| Package Level 1 Gross Weight | 21.6 kg |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Declaration of Conformity - CE | 1SCC340002D2703 |
| Package Level 1 Depth / Length | 710 mm |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
