1SCA123845R1001

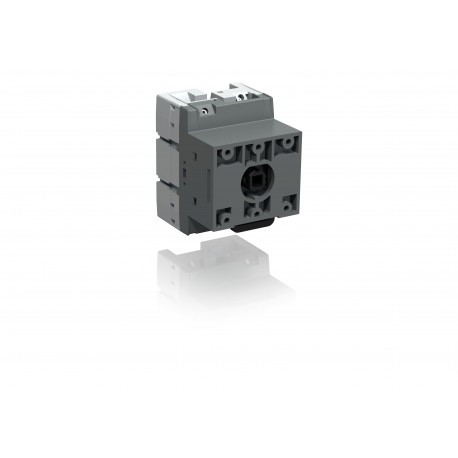

1SCA123845R1001 ABB Switch disconnector DC OTDC32FT2
$0.00USD
3496 in stock
Key Specifications
:1SCC307023F0002
ETIM 7:EC000216 - Switch disconnector
ETIM 8:EC000216 - Switch disconnector
ETIM 9:EC000216 - Switch disconnector (low voltage)
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1SCC307023F0002 | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| Standards | IEC 60947-1, -3 |
| Power Loss | at Rated Operating Conditions per Pole 0.5 W |
| Handle Type | Handle and shaft not included |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Utilization | Photovoltaic |
| Mounting Type | Door mounting |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Operating Mode | Front Operated |
| Shaft Diameter | 6 mm |
| CCC Certificate | CQC2012010302579872 |
| Number of Poles | 2 |
| Pollution Degree | 3 |
| RoHS Information | 1SCC301239D0201 |
| Country of Origin | Estonia (EE) |
| Product Net Width | 52.5 mm |
| REACH Declaration | 1SCC301240D0201 |
| Special Functions | No |
| DNV GL Certificate | 1SCC301231D0201 |
| E-Number (Finland) | 3601396 |
| Number of Circuits | 1 |
| Product Frame Size | XS |
| Product Net Height | 69 mm |
| Product Net Weight | 0.1 kg |
| Cable Cross-Section | 2.5 ... 16 mm² |
| Mechanical Drawings | OTDC16-32FT2_palikkamalli.igs |
| Package Level 1 EAN | 6417019545646 |
| Degree of Protection | Front IP20 |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Customs Tariff Number | 85363030 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 90 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 90 mm |
| Instructions and Manuals | 1SCC301079M0206 |
| Environmental Information | NA |
| Rated Operational Voltage | 1000 V |
| Object Classification Code | Q |
| Position of Line Terminals | Top In - Bottom Out |
| Product Net Depth / Length | 64 mm |
| Package Level 1 Gross Weight | 0.2 kg |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Rated Insulation Voltage (Ui) | 1000 V |
| Declaration of Conformity - CE | 1SCC301192D2704 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Package Level 1 Depth / Length | 54 mm |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Conventional Thermal Current (Ithe) | Fully Enclosed 45 A |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Rated Operational Current DC-21B (Ie) | (660 V) 32 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V DC) 0.8 kA |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 45 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1000 V DC) 0.8 kA |
| Positive Opening Operation Torque (Direct Opening Action) | 0.4 … 0.8 N·m |
