1SCA112678R1001

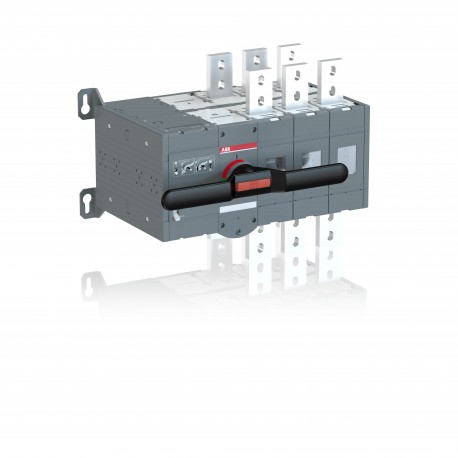

1SCA112678R1001 ABB OTM1600E3CM230C MOTORIZED C/O SWITCH
$0.00USD
4283 in stock
Key Specifications
:(500 V) 1600 A
ETIM 7:EC000216 - Switch disconnector
ETIM 8:EC000216 - Switch disconnector
ETIM 9:EC000216 - Switch disconnector (low voltage)
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (500 V) 1600 A | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| Power Loss | 48 W |
| Handle Type | Direct mounted handle |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Handle Color | Black |
| Mounting Type | Base mounting |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Operating Mode | Front operated |
| Number of Poles | 3 |
| Transition Type | Open |
| Pollution Degree | 3 |
| RoHS Information | 1SCC011020D0201 |
| Country of Origin | Finland (FI) |
| Product Net Width | 507 mm |
| REACH Declaration | 1SCC011021D0201 |
| E-Number (Finland) | 3641788 |
| Product Net Height | 372 mm |
| Product Net Weight | 59 kg |
| Package Level 1 EAN | 6417019453934 |
| Degree of Protection | Front IP20 |
| Customs Tariff Number | 85365080 |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 440 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 565 mm |
| Distance Between Phases | Standard |
| End of Life Instructions | 1SCC303060M0201 |
| Instructions and Manuals | 1SCC303002M0206 |
| Environmental Information | 1SCC303036D0202 |
| Motor Operational Voltage | 220 ... 240 V AC |
| Rated Operational Voltage | 1000 V |
| Object Classification Code | Q |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Product Net Depth / Length | 372 mm |
| Package Level 1 Gross Weight | 59 kg |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Rated Insulation Voltage (Ui) | 1000 V |
| Declaration of Conformity - CE | 1SCC303027D0201 |
| Package Level 1 Depth / Length | 700 mm |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 710 kW |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1600 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1600 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1600 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
