1SCA104936R1001

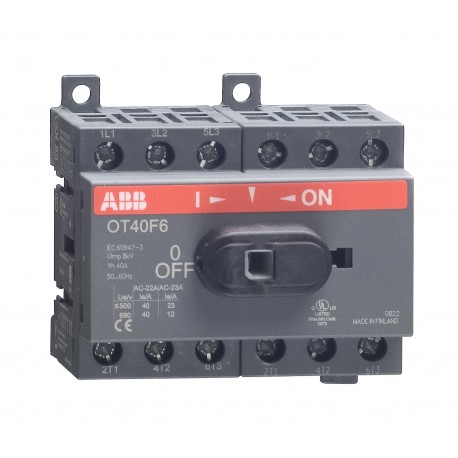

1SCA104936R1001 ABB OT40F6 switch-disconnector
$0.00USD
4343 in stock
Key Specifications
:1SCC301441F0001
ETIM 7:EC000216 - Switch disconnector
ETIM 8:EC000216 - Switch disconnector
ETIM 9:EC000216 - Switch disconnector (low voltage)
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1SCC301441F0001 | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| Lock Type | No |
| Standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Handle Type | Knob |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ampere Rating | 40 A |
| Mounting Type | Base mounting |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Operating Mode | Front operated |
| UL Certificate | cULus certificate OT16-80 |
| Number of Poles | 6 |
| VDE Certificate | No certification needed |
| ATEX Certificate | No certification needed |
| Pollution Degree | 3 |
| RoHS Information | 1SCC011020D0201 |
| Country of Origin | Finland (FI) |
| Product Net Width | 70 mm |
| REACH Declaration | 1SCC011021D0201 |
| Special Functions | No |
| Tightening Torque | acc. IEC 60947-1 0.8N·m |
| E-Number (Finland) | 3601444 |
| Product Net Height | 68 mm |
| Product Net Weight | 0.21 kg |
| Cable Cross-Section | Cu 0.75 ... 10 mm² |
| Mechanical Drawings | 1SCC301442F0001 |
| Package Level 1 EAN | 6417019390765 |
| Degree of Protection | Front IP20 |
| Customs Tariff Number | 85365080 |
| Mechanical Durability | 20000 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 80 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 79 mm |
| A2L Certificate – IEC | 1SCC301335D0201 |
| Distance Between Phases | Standard |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp |
| Instructions and Manuals | 1SCC301055M0003 |
| Tightening Torque UL/CSA | 7 in·lb |
| Environmental Information | 1SCC301262D0201 |
| Rated Operational Voltage | Main Circuit 750 V |
| Object Classification Code | Q |
| Position of Line Terminals | Top In - Bottom Out |
| Product Net Depth / Length | 68 mm |
| Package Level 1 Gross Weight | 0.25 kg |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Declaration of Conformity - CE | 1SCC301166D2703 |
| Package Level 1 Depth / Length | 108 mm |
| Maximum Operating Voltage UL/CSA | 600 V |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| Conventional Thermal Current (Ithe) | Fully Enclosed 40 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 5.5 kW |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 40 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 23 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Environmental Product Declaration - EPD | 1SCC301278D0201 |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 0.71 kA |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 40 A |
| Rated Conditional Short-Circuit Current (Inc) | (40 A fuse, ≤415V) 50 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA |
Product Description
OT40F6 disconnect switch
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
