1SCA022809R9200

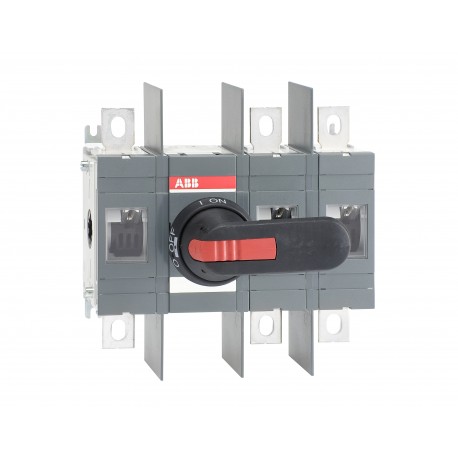

1SCA022809R9200 ABB Disconnector switch OT400E12WP
$0.00USD
4454 in stock
Key Specifications
:(500 V) 400 A
ETIM 7:EC000216 - Switch disconnector
ETIM 8:EC000216 - Switch disconnector
ETIM 9:EC000216 - Switch disconnector (low voltage)
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (500 V) 400 A | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| Lock Type | Yes |
| Standards | IEC 60947-3 |
| Power Loss | at Rated Operating Conditions per Pole 10 W |
| Handle Type | Handle and shaft included |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Terminal Type | Lug terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| BV Certificate | 1SCC301103D0201 |
| GL Certificate | 1SCC301139D0201 |
| LR Certificate | 1SCC301144D0201 |
| Operating Mode | Front operated |
| Terminal Width | 25 mm |
| UL Certificate | No certification needed |
| Number of Poles | 3 |
| VDE Certificate | No certification needed |
| ATEX Certificate | No certification needed |
| Pollution Degree | 3 |
| RoHS Information | 1SCC011020D0201 |
| Country of Origin | Finland (FI) |
| Product Net Width | 226 mm |
| REACH Declaration | 1SCC011021D0201 |
| Special Functions | Wide phase distance |
| Tightening Torque | acc. IEC 60947-1 30 … 44 N·m |
| DNV GL Certificate | 1SCC301174D0204 |
| E-Number (Finland) | 3660830 |
| Product Net Height | 220 mm |
| Product Net Weight | 3.38 kg |
| Package Level 1 EAN | 6417019272528 |
| Degree of Protection | Front IP00 |
| Customs Tariff Number | 85365080 |
| Mechanical Durability | 16000 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 290 mm |
| A2L Certificate – IEC | 1SCC301337D0201 |
| Distance Between Phases | Wide phase distance |
| End of Life Instructions | 1SCC301118M0201 |
| Instructions and Manuals | 1SCC301035M0019 |
| Environmental Information | 1SCC301266D0201 |
| Rated Operational Voltage | Main Circuit 1000 V |
| Object Classification Code | Q |
| Position of Line Terminals | Top In - Bottom Out |
| Product Net Depth / Length | 107 mm |
| Package Level 1 Gross Weight | 3.66 kg |
| Switches Operating Mechanism | Mechanism Between the Poles |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Declaration of Conformity - CE | 1SCC301135D2704 |
| Package Level 1 Depth / Length | 170 mm |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 132 kW |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Environmental Product Declaration - EPD | 1SCC301283D0201 |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 65 kA |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Rated Conditional Short-Circuit Current (Inc) | (500 A fuse, 500 V) 100 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
Product Description
OT400E12WP SWITCH-DISCONNECTOR
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
