1SCA022785R6300

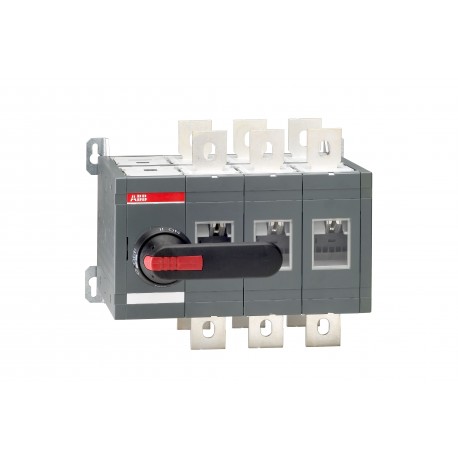

1SCA022785R6300 ABB OT800E03CP CHANGE-OVER SWITCH
$0.00USD
3252 in stock
Key Specifications
:12.24 in
ETIM 7:EC000216 - Switch disconnector
ETIM 8:EC000216 - Switch disconnector
ETIM 9:EC000216 - Switch disconnector (low voltage)
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 12.24 in | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| Power Loss | 40 W |
| Handle Type | Handle and shaft included |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Handle Color | Black |
| Ampere Rating | 800 A |
| Mounting Type | Base mounting |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Operating Mode | Front operated |
| Terminal Width | 40 mm |
| DNV Certificate | 1SCC303138D0201 |
| Number of Poles | 3 |
| Transition Type | Open |
| Pollution Degree | 3 |
| RoHS Information | 1SCC011020D0201 |
| Country of Origin | Finland (FI) |
| Product Net Width | 311 mm |
| REACH Declaration | 1SCC011021D0201 |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| E-Number (Finland) | 3641508 |
| Product Net Height | 250 mm |
| Product Net Weight | 15.37 kg |
| Package Level 1 EAN | 6417019255996 |
| Degree of Protection | Front IP20 |
| Customs Tariff Number | 85365080 |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 310 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 330 mm |
| Distance Between Phases | Standard |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Information | 1SCC303050D0201 |
| Rated Operational Voltage | 1000 V |
| Object Classification Code | Q |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Product Net Depth / Length | 280 mm |
| Package Level 1 Gross Weight | 18.51 kg |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Rated Insulation Voltage (Ui) | 1000 V |
| Declaration of Conformity - CE | 1SCC303008D2703 |
| Package Level 1 Depth / Length | 560 mm |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Conventional Thermal Current (Ithe) | Fully Enclosed 800 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 450 kW |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 800 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms |
Product Description
Switch switch OT800E03CP
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
