1SCA022763R6360

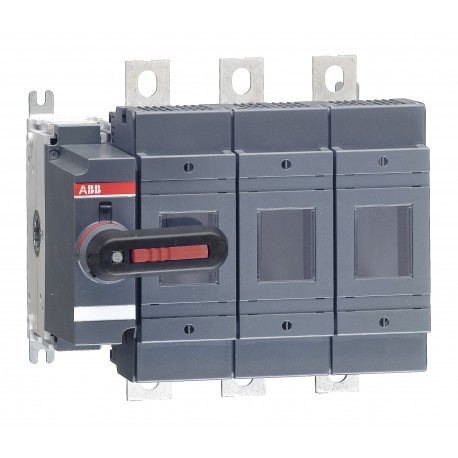

1SCA022763R6360 ABB OS250D03K Switch fuse
$0.00USD
3354 in stock
Key Specifications
:8.7 lb
ETIM 7:EC001040 - Fuse switch disconnector
ETIM 8:EC001040 - Fuse switch disconnector
ETIM 9:EC001040 - Fuse switch disconnector
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 8.7 lb | |
| ETIM 7 | EC001040 - Fuse switch disconnector |
| ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371401 |
| Fuse Size | NH0 |
| Standards | IEC 60947-3 |
| Power Loss | at Rated Operating Conditions per Pole 13 W |
| Fuse System | DIN |
| Handle Type | Direct mounted handle included |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Mounting Type | Base mounting |
| Terminal Type | Lug terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Operating Mode | Front Operated |
| Terminal Width | 25 mm |
| UL Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Number of Poles | 3 |
| Pollution Degree | 3 |
| RoHS Information | 1SCC011020D0201 |
| Country of Origin | Finland (FI) |
| Product Net Width | 208 mm |
| REACH Declaration | 1SCC011021D0201 |
| Tightening Torque | 30 ... 44 N·m |
| DNV GL Certificate | 1SCC311123D0203 |
| E-Number (Finland) | 3642479 |
| Product Net Height | 193 mm |
| Product Net Weight | 4 kg |
| Rated Current (In) | Main Circuit 250 A |
| Package Level 1 EAN | 6417019249421 |
| Customs Tariff Number | 85365080 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 200 mm |
| A2L Certificate – IEC | 1SCC311209D0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Object Classification Code | Q |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Product Net Depth / Length | 191 mm |
| Package Level 1 Gross Weight | 4.3 kg |
| Switches Operating Mechanism | 03 (Left Side) |
| Rated Insulation Voltage (Ui) | 1000 V |
| Declaration of Conformity - CE | 1SCC311095D2704 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Package Level 1 Depth / Length | 310 mm |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
Product Description
Fuse switch OS250D03K
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
