1SCA022753R7710

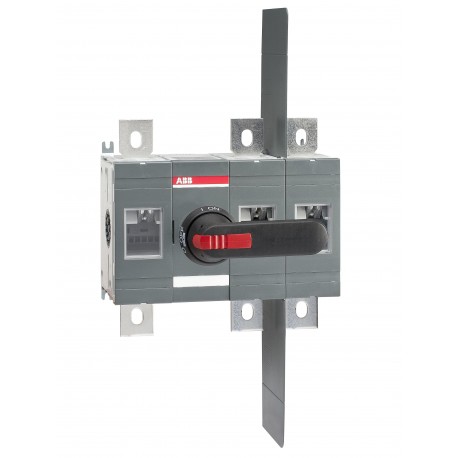

1SCA022753R7710 ABB Switch disconnector OT600U12P
$0.00USD
4595 in stock
Key Specifications
:1SCC301379F0001
ETIM 7:EC000216 - Switch disconnector
ETIM 8:EC000216 - Switch disconnector
ETIM 9:EC000216 - Switch disconnector (low voltage)
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1SCC301379F0001 | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| Lock Type | Yes |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Power Loss | at Rated Operating Conditions per Pole 40 W |
| Handle Type | Handle and shaft included |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Handle Color | Black |
| Ampere Rating | 600 A |
| Mounting Type | Base mounting |
| Terminal Type | Lug terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| BV Certificate | 1SCC301103D0201 |
| Operating Mode | Front operated |
| Terminal Width | 39 mm |
| UL Certificate | cULus certificate OT600 |
| Number of Poles | 3 |
| Pollution Degree | 3 |
| RoHS Information | 1SCC011020D0201 |
| Country of Origin | Finland (FI) |
| Product Net Width | 266 mm |
| REACH Declaration | 1SCC011021D0201 |
| Special Functions | No |
| Tightening Torque | acc. IEC 60947-1 56.5 N·m |
| E-Number (Finland) | 3660860 |
| Product Net Height | 250 mm |
| Product Net Weight | 5.6 kg |
| Mechanical Drawings | 1SCC301380F0001 |
| Package Level 1 EAN | 6417019245362 |
| Degree of Protection | Front IP00 |
| Customs Tariff Number | 85365080 |
| Mechanical Durability | 10000 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 260 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 152 mm |
| Distance Between Phases | Standard |
| End of Life Instructions | 1SCC301119M0201 |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 150 Hp |
| Instructions and Manuals | 1SCC301042M0211 |
| Environmental Information | 1SCC301232D0201 |
| Rated Operational Voltage | Main Circuit 1000 V |
| Object Classification Code | Q |
| Position of Line Terminals | Top In - Bottom Out |
| Product Net Depth / Length | 140 mm |
| Package Level 1 Gross Weight | 6.6 kg |
| Switches Operating Mechanism | Mechanism Between the Poles |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Declaration of Conformity - CE | 1SCC301140D2704 |
| Package Level 1 Depth / Length | 335 mm |
| Maximum Operating Voltage UL/CSA | 600 V |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Conventional Thermal Current (Ithe) | Fully Enclosed 600 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 450 kW |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Rated Operational Current AC-21A (Ie) | (500 V) 800 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Environmental Product Declaration - EPD | 1SCC301284D0201 |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 600 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
Product Description
OT600U12P disconnect switch
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
