In Stock Hot Product
1SCA022715R6150

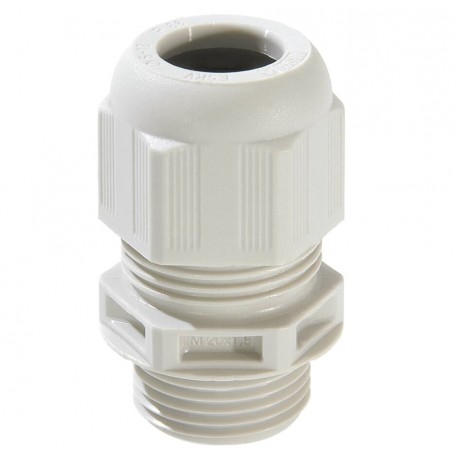

1SCA022715R6150 ABB GASKET CABLE 9-17mm ESKV25
$0.00USD
3811 in stock
Key Specifications
ETIM 7:EC000441 - Cable gland
ETIM 8:EC000441 - Cable gland
ETIM 9:EC000441 - Cable gland
UNSPSC:39122221
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| ETIM 7 | EC000441 - Cable gland |
| ETIM 8 | EC000441 - Cable gland |
| ETIM 9 | EC000441 - Cable gland |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27144432 |
| RoHS Status | Following EU Directive 2011/65/EU |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Enclosure Type | M25 |
| RoHS Information | 1SCC340075D0201 |
| Country of Origin | Finland (FI) |
| E-Number (Sweden) | 3134327 |
| Product Net Width | 46 mm |
| REACH Declaration | 1SCC340076D0201 |
| Special Functions | Sealing ring |
| Enclosure Material | Polyamide |
| Product Net Height | 32 mm |
| Product Net Weight | 0.02 kg |
| Mechanical Drawings | ESKV25.stp |
| Package Level 1 EAN | 6417019232980 |
| Degree of Protection | acc. to IEC 60529 IP67 |
| Customs Tariff Number | 85389099 |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 100 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 100 mm |
| Instructions and Manuals | No Instructions and Manuals needed |
| Object Classification Code | Q |
| Product Net Depth / Length | 32 mm |
| Package Level 1 Gross Weight | 0.02 kg |
| Declaration of Conformity - CE | No declaration needed |
| Package Level 1 Depth / Length | 100 mm |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| IDEA Granular Category Code (IGCC) | 5267 >> Safety Switch Accessories |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
CABLE GLAND 9-17mm ESKV25
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
