1SCA022613R1200

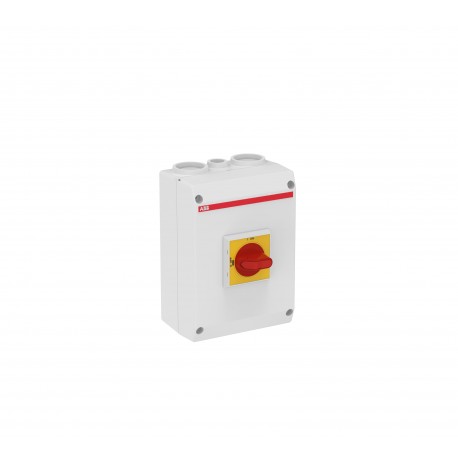

1SCA022613R1200 ABB Int. Boxed disconnector OTP63A3M
$0.00USD
4729 in stock
Key Specifications
:(500 V) 63 A
ETIM 7:EC000216 - Switch disconnector
ETIM 8:EC000216 - Switch disconnector
ETIM 9:EC000216 - Switch disconnector (low voltage)
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (500 V) 63 A | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122205 |
| eClass | V11.1 : 27371403 |
| Standards | IEC 60947-1, -3 |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Handle Type | Selector handle |
| RoHS Status | Following EU Directive 2011/65/EU |
| Handle Color | Red / Yellow |
| Neutral Type | Fixed neutral |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| BV Certificate | 1SCC340018D0204 |
| Number of Poles | 3 |
| Pollution Degree | 3 |
| RoHS Information | 1SCC340075D0201 |
| Country of Origin | Finland (FI) |
| E-Number (Norway) | 1429405 |
| Product Net Width | 145 mm |
| REACH Declaration | 1SCC340076D0201 |
| Tightening Torque | Main Circuit 6 N·m |
| DNV GL Certificate | 1SCC340045D0203 |
| Enclosure Material | Plastic |
| Product Net Height | 200 mm |
| Product Net Weight | 2.3 kg |
| Cable Cross-Section | 10 ... 70 mm² |
| Mechanical Drawings | OTPK201490SM32.stp |
| Package Level 1 EAN | 6417019199566 |
| Cable Entry Position | Top and/or Bottom |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Customs Tariff Number | 85363030 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 162 mm |
| Wire Stripping Length | 20 mm |
| Cable Outlets Per Side | 2xM32+M16 / 2xM32+M16 |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 148 mm |
| Impact Resistance Rating | Housing IK08 |
| Instructions and Manuals | 1SCC340002M0012 |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Rated Operational Voltage | Main Circuit 750 V |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Object Classification Code | Q |
| Product Net Depth / Length | 90 mm |
| Package Level 1 Gross Weight | 2.4 kg |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Declaration of Conformity - CE | 1SCC340003D2704 |
| Package Level 1 Depth / Length | 222 mm |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm² |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Conventional Thermal Current (Ithe) | Fully Enclosed 115 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 30 kW |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 3.6 kA |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
Product Description
OTP63A3M Safety switch
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
