1SBN010142R1222

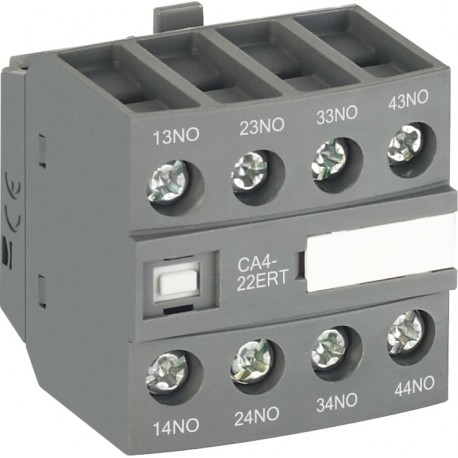

1SBN010142R1222 ABB CA4-22NRTBLOQUECONTACTOSAUX.
$0.00USD
3962 in stock
Key Specifications
:(690 V) 2 A
ETIM 4:EC002498 - Accessories for low-voltage switch technology
ETIM 5:EC002498 - Accessories for low-voltage switch technology
ETIM 6:EC000041 - Auxiliary contact block
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (690 V) 2 A | |
| ETIM 4 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6 | EC000041 - Auxiliary contact block |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| UNSPSC | 39121522 |
| eClass | V11.0 : 27371302 |
| Standards | IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14-10 |
| RoHS Status | Following EU Directive 2011/65/EU |
| Suitable For | NFZB22E |
| Terminal Type | Ring-Tongue Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CB Certificate | CB_SE-112440 |
| UR Certificate | UL_20120924-E252354-4-4 |
| WEEE B2C / B2B | Business To Business |
| CQC Certificate | CQC2011010304496319 |
| EAC Certificate | EAC_RU C-FR ME77 B03391 |
| RoHS Information | 2CMT2021-006277 |
| Product Net Width | 45 mm |
| REACH Declaration | 2CMT2021-006202 |
| Product Net Height | 43 mm |
| Product Net Weight | 0.05 kg |
| Package Level 1 EAN | 3471523130500 |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Customs Tariff Number | 85389099 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 46 mm |
| Package Level 2 Units | box 0 piece |
| Package Level 2 Width | 0 mm |
| Package Level 3 Units | 0 piece |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 46 mm |
| Package Level 2 Height | 0 mm |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Instructions and Manuals | 1SBC101035M6801 |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Object Classification Code | K |
| Product Net Depth / Length | 39.8 mm |
| Package Level 1 Gross Weight | 0.05 kg |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| Declaration of Conformity - CE | 1SBD250007U1000 |
| Package Level 1 Depth / Length | 46 mm |
| Package Level 2 Depth / Length | 0 mm |
| Declaration of Conformity - CCC | 2020980304001258 |
| Number of Auxiliary Contacts NC | 2 |
| Number of Auxiliary Contacts NO | 2 |
| Declaration of Conformity - UKCA | 1SBD250038U1000 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A |
Product Description
CA4-22NRTCONTACTSaux.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
