1SBN010013R1001

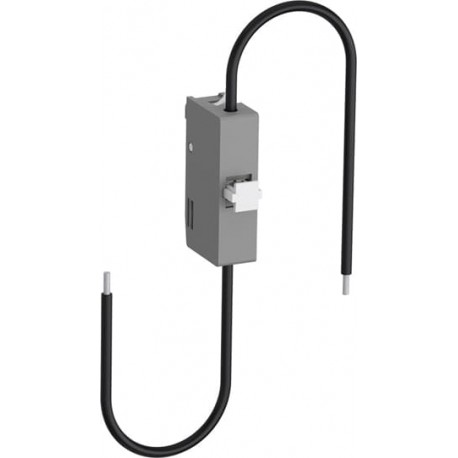

1SBN010013R1001 ABB CB5-01 Auxiliary Contact Block
$0.00USD
3274 in stock
Key Specifications
:(220 / 240 V) 3 A
ETIM 4:EC002498 - Accessories for low-voltage switch technology
ETIM 5:EC002498 - Accessories for low-voltage switch technology
ETIM 6:EC000041 - Auxiliary contact block
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (220 / 240 V) 3 A | |
| ETIM 4 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6 | EC000041 - Auxiliary contact block |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| UNSPSC | 39121522 |
| eClass | V11.0 : 27371302 |
| Standards | UL 508, CSA 22.2 No. 14 |
| RoHS Status | Following EU Directive 2011/65/EU |
| Feature Name | Feature Value |
| Suitable For | AF09 |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| UL Certificate | UL-US-L252354-154-02212102-4 |
| WEEE B2C / B2B | Business To Business |
| EAC Certificate | EAC_RU C-FR ME77 B03391 |
| UL Listing Card | UL_E252354 |
| GOST Certificate | GOST_POCCFRME77B07175 |
| Model (EF000010) | Clip-on |
| RINA Certificate | RINA_ELE172319XG001 |
| RoHS Information | 2CMT2021-006277 |
| Product Net Width | 9.8 mm |
| REACH Declaration | 2CMT2021-006202 |
| Product Net Height | 36 mm |
| Product Net Weight | 0.016 kg |
| Package Level 1 EAN | 3471522121059 |
| Customs Tariff Number | 85389099 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 65 mm |
| Package Level 2 Units | box 126 piece |
| Package Level 2 Width | 245 mm |
| Package Level 3 Units | 4536 piece |
| Lamp holder (EF000048) | None |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 15 mm |
| Package Level 2 Height | 153 mm |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Instructions and Manuals | FPTC407719P0002 |
| Rated Operational Voltage | Auxiliary Circuit 600 V |
| Mounting method (EF000003) | Front fastening |
| Object Classification Code | K |
| Product Net Depth / Length | 21.6 mm |
| Package Level 1 Gross Weight | 0.016 kg |
| Package Level 2 Gross Weight | 2.016 kg |
| Declaration of Conformity - CE | 1SBD250809U1000 |
| Package Level 1 Depth / Length | 72 mm |
| Package Level 2 Depth / Length | 75 mm |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 0 |
| Declaration of Conformity - UKCA | 1SBD250826U1000 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 6 A |
| Type of electric connection (EF003961) | Screw connection |
| Number of fault-signal switches (EF007613) | 0 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 3 A |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 1 |
Product Description
CB5-01 IMPULSE CONTACT BLOCK
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
