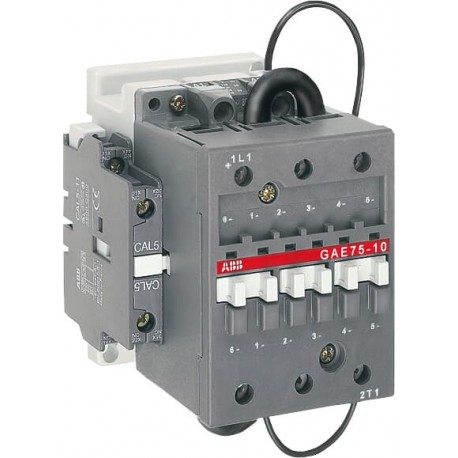

1SBL419025R8111 ABB GAE75-10-11 24V DC Contactor
$0.00USD
4723 in stock
Key Specifications
:Main Circuit 1000 V DC
ETIM 4:EC002552 - Power contactor, DC switching
ETIM 5:EC002552 - Power contactor, DC switching
ETIM 6:EC002552 - Power contactor, DC switching
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Main Circuit 1000 V DC | |
| ETIM 4 | EC002552 - Power contactor, DC switching |
| ETIM 5 | EC002552 - Power contactor, DC switching |
| ETIM 6 | EC002552 - Power contactor, DC switching |
| ETIM 7 | EC002552 - Power contactor, DC switching |
| ETIM 8 | EC002552 - Power contactor, DC switching |
| UNSPSC | 39121529 |
| eClass | V11.0 : 27371018 |
| RoHS Status | Following EU Directive 2011/65/EU |
| Operate Time | Between Coil De-energization and NC Contact Closing 8 ... 18 ms |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CB Certificate | CB_CN45325 |
| WEEE B2C / B2B | Business To Business |
| CCC Certificate | CCC_2018010304129268 |
| CQC Certificate | CQC2018010304129268 |
| CSA Certificate | CSA_1033838_LR056745 |
| EAC Certificate | EAC_RU C-FR ME77 B03599 |
| UL Listing Card | UL_E319322 |
| Coil Consumption | Average Holding Value, from Warm State 4 W |
| RoHS Information | 2CMT2021-006277 |
| Product Net Width | 94 mm |
| REACH Declaration | 2CMT2021-006202 |
| Climatic Withstand | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| Product Net Height | 132 mm |
| Product Net Weight | 1.3 kg |
| Package Level 1 EAN | 3471522113818 |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Customs Tariff Number | 85364900 |
| Mechanical Durability | 5 million |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 140 mm |
| Package Level 2 Units | box 63 piece |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 96 mm |
| Ambient Air Temperature | Close to Contactor for Storage -60 ... +80 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Instructions and Manuals | FPTC407691P0003 |
| General Use Rating UL/CSA | (1000 V DC) 35 A |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 1 |
| Object Classification Code | Q |
| Product Net Depth / Length | 108 mm |
| Package Level 1 Gross Weight | 1.3 kg |
| Package Level 2 Gross Weight | 81.9 kg |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 1000 V |
| Declaration of Conformity - CE | 1SBD250807U1000 |
| Package Level 1 Depth / Length | 146 mm |
| Declaration of Conformity - CCC | 2020980304001625 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Connecting Capacity Main Circuit | Flexible with Cable End 6 ... 16 mm² |
| Declaration of Conformity - UKCA | 1SBD250824U1000 |
| Maximum Operating Voltage UL/CSA | Main Circuit 1000 V DC |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
| Data Sheet, Technical Information | 1SBC100122C0202_Ch02 |
| Mounting by Screws (not supplied) | 2 x M6 screws placed diagonally |
| IDEA Granular Category Code (IGCC) | 4763 >> Power contactor, DC switching |
| Rated Control Circuit Voltage (Uc) | DC Operation 24 V |
| Rated Operational Current DC-1 (Ie) | (1000 V) 1-Pole, 40 °C 35 A |
| Rated Operational Current DC-3 (Ie) | (110 V) 1-Pole, 40 °C 120 A |
| Rated Operational Current DC-5 (Ie) | (110 V) 1-Pole, 40 °C 85 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Cable End 0.75 ... 2.5 mm² |
| Maximum Electrical Switching Frequency | 300 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 125 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A |
| Connecting Terminals (delivered in open position) Main Poles | M 6 (+,-) pozidriv 2 screws with 1x (13 x 10 mm) connector |
