1SBL411024R8000

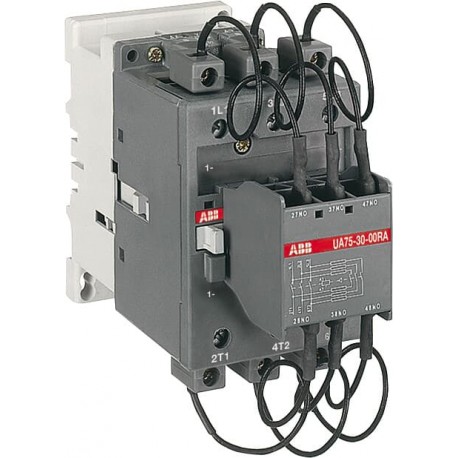

1SBL411024R8000 ABB UA75-30-00RA 220-230V 50Hz / 230-240V 60Hz Contactor
$0.00USD
4808 in stock
Key Specifications
Feature Name:Feature Value
Customs Tariff Number::85364900
Minimum Order Quantity::1 piece
RoHS Status: (Technical):No declaration needed
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Customs Tariff Number: | 85364900 |
| Minimum Order Quantity: | 1 piece |
| RoHS Status: (Technical) | No declaration needed |
| Operate Time: (Dimensions) | Between Coil Energization and NO Contact Closing 8 ... 27 msBetween Coil De-energization and NO Contact Opening 4 ... 11 ms |
| Terminal Type: (Dimensions) | Screw Terminals |
| Dimension Diagram: (Ordering) | FPTE307844 |
| Coil Consumption: (Dimensions) | Average Holding Value 50 / 60 Hz 18 V·AAverage Holding Value 50 / 60 Hz 5.5 WAverage Holding Value 50 Hz 18 V·AAverage Holding Value 50 Hz 5.5 WAverage Holding Value 60 Hz 18 V·AAverage Holding Value 60 Hz 5.5 WAverage Pull-in Value 50 Hz 180 V·AAverage Pull-in Value 60 Hz 210 V·A |
| CB Certificate: (Environmental) | CB_FR3449_60016915-509739D |
| Climatic Withstand: (Technical) | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| ETIM 4: (Container Information) | EC001079 - Capacitor magnet contactor |
| ETIM 5: (Container Information) | EC001079 - Capacitor magnet contactor |
| ETIM 6: (Container Information) | EC001079 - Capacitor contactor |
| ETIM 7: (Container Information) | EC001079 - Capacitor contactor |
| UL Certificate: (Environmental) | UL_20120830-E312527-10-1 |
| UNSPSC: (Container Information) | 39121529 |
| CCC Certificate: (Environmental) | CCC_2004010304138318 |
| CSA Certificate: (Environmental) | CSA_1033838_LR056745 |
| EAC Certificate: (Environmental) | EAC_RU C-FR ME77 B01010 |
| UL Listing Card: (Environmental) | UL_E312527 |
| GOST Certificate: (Environmental) | GOST_POCCFRME77B07175 |
| RoHS Information: (Environmental) | 1SBC101059D0201 |
| Degree of Protection: (Dimensions) | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Ambient Air Temperature: (Technical) | Near Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... +55 °CNear Contactor for Operation in Free Air (Uc) -40 ... +70 °CClose to Contactor for Storage -60 ... +80 °C |
| Instructions and Manuals: (Ordering) | 1SBC101002M5501 |
| Voltage type for actuating (EF008242) | AC |
| Product Net Width: (Popular Downloads) | 70 mm |
| Maximum Breaking Capacity: (Dimensions) | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A |
| Product Net Height: (Popular Downloads) | 150 mm |
| Product Net Weight: (Popular Downloads) | 1.35 kg |
| Rated Operational Voltage: (Dimensions) | Main Circuit 690 V |
| Number of Main Contacts NC: (Dimensions) | 0 |
| Number of Main Contacts NO: (Dimensions) | 3 |
| Instructions and Manuals: (Environmental) | 1SBC101002M5501 |
| Environmental Information: (Environmental) | 1SBD250124E1000 |
| Rated Insulation Voltage (Ui): (Dimensions) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| Data Sheet, Technical Information: (Ordering) | 1SBC101140C0203 |
| Number of Auxiliary Contacts NC: (Dimensions) | 0 |
| Number of Auxiliary Contacts NO: (Dimensions) | 0 |
| Connecting Capacity Main Circuit: (Dimensions) | Rigid Cable 6 ... 16 mm²Flexible with Cable End 6 ... 10 mm² |
| Short-Circuit Protective Devices: (Dimensions) | gG Type Fuses 200 A |
| Declaration of Conformity - CE: (Environmental) | 1SBD250805U1000 |
| Product Net Depth / Length: (Popular Downloads) | 140.4 mm |
| Rated reactive power at 400 V, 50 Hz (EF007044) | 60 kvar |
| Rated Control Circuit Voltage (Uc): (Dimensions) | 50 Hz 220 ... 230 V60 Hz 230 ... 240 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 220 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 230 V |
| Connecting Capacity Auxiliary Circuit: (Dimensions) | Rigid Cable 1 ... 4 mm²Flexible with Cable End 0.75 ... 2.5 mm² |
| Maximum Operating Altitude Permissible: (Technical) | 3000 m |
| Object Classification Code: (Container Information) | Q |
| Maximum Electrical Switching Frequency: (Dimensions) | 240 cycles per hour |
| Rated Impulse Withstand Voltage (Uimp): (Dimensions) | 8 kV |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Package Level 1 EAN: (Certificates and Declarations (Document Number)) | 3471522305800 |
| Package Level 1 Units: (Certificates and Declarations (Document Number)) | 1 piece |
| Package Level 1 Width: (Certificates and Declarations (Document Number)) | 160 mm |
| Package Level 2 Units: (Certificates and Declarations (Document Number)) | 63 piece |
| Package Level 1 Height: (Certificates and Declarations (Document Number)) | 85 mm |
| Connecting terminals (delivered in open position) Main poles: (Dimensions) | M 6 (+,-) pozidriv 2 screws with 1x (13 x 10 mm) connector |
| Package Level 1 Gross Weight: (Certificates and Declarations (Document Number)) | 1.35 kg |
| Package Level 2 Gross Weight: (Certificates and Declarations (Document Number)) | 85.05 kg |
| Package Level 1 Depth / Length: (Certificates and Declarations (Document Number)) | 200 mm |
Product Description
UA75-30-00RA CONT. condens. 60kVAr 230V
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
