1SBL371022R5500

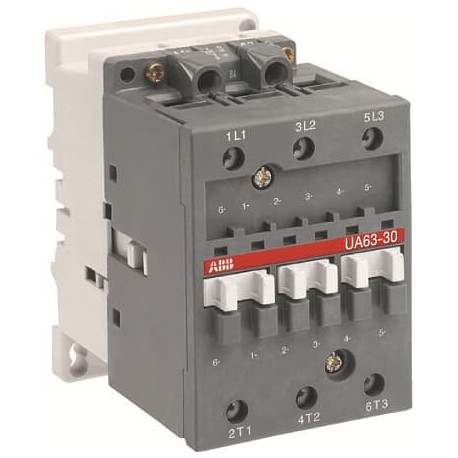

1SBL371022R5500 ABB UA63-30-00 500V 50Hz / 600V 60Hz Contactor
$0.00USD
3054 in stock
Key Specifications
:Main Circuit 50 / 60 Hz
ETIM 4:EC001079 - Capacitor magnet contactor
ETIM 5:EC001079 - Capacitor magnet contactor
ETIM 6:EC001079 - Capacitor contactor
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Main Circuit 50 / 60 Hz | |
| ETIM 4 | EC001079 - Capacitor magnet contactor |
| ETIM 5 | EC001079 - Capacitor magnet contactor |
| ETIM 6 | EC001079 - Capacitor contactor |
| ETIM 7 | EC001079 - Capacitor contactor |
| ETIM 8 | EC001079 - Capacitor contactor |
| UNSPSC | 39121529 |
| eClass | V11.0 : 27371006 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1 |
| RoHS Status | Following EU Directive 2011/65/EU |
| Feature Name | Feature Value |
| Operate Time | Between Coil De-energization and NO Contact Opening 4 ... 11 ms |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CB Certificate | CB_CN-58854 |
| UL Certificate | UL-US-L312527-1101-21215991-6 |
| WEEE B2C / B2B | Business To Business |
| CQC Certificate | CQC2018010304128276 |
| UL Listing Card | UL_E312527 |
| Coil Consumption | Average Holding Value 50 / 60 Hz 18 V·A |
| GOST Certificate | GOST_POCCFRME77B07175 |
| RoHS Information | 2CMT2021-006277 |
| Product Net Width | 70 mm |
| REACH Declaration | 2CMT2021-006202 |
| Climatic Withstand | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| Product Net Height | 110 mm |
| Product Net Weight | 1.16 kg |
| Package Level 1 EAN | 3471522090553 |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Customs Tariff Number | 85364900 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 140 mm |
| Package Level 2 Units | box 20 piece |
| Package Level 2 Width | 503 mm |
| Package Level 3 Units | 160 piece |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 96 mm |
| Package Level 2 Height | 307 mm |
| Ambient Air Temperature | Close to Contactor for Storage -60 ... +80 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Instructions and Manuals | FPTC407700P0003 |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A |
| Rated Operational Voltage | Main Circuit 690 V |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 3 |
| Object Classification Code | Q |
| Product Net Depth / Length | 108 mm |
| Package Level 1 Gross Weight | 1.16 kg |
| Package Level 2 Gross Weight | 23.2 kg |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 1000 V |
| Declaration of Conformity - CE | 1SBD250805U1000 |
| Package Level 1 Depth / Length | 146 mm |
| Package Level 2 Depth / Length | 153 mm |
| Declaration of Conformity - CCC | 2020980304001623 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Connecting Capacity Main Circuit | Flexible with Cable End 6 ... 16 mm² |
| Declaration of Conformity - UKCA | 1SBD250822U1000 |
| Data Sheet, Technical Information | 1SBC101140C0203 |
| Mounting by Screws (not supplied) | 2 x M6 screws placed diagonally |
| Rated Control Circuit Voltage (Uc) | 50 Hz 500 V |
| Rated Operational Power AC-6b (Pe) | (230 / 240 V) 40 °C, 50 / 60 Hz 25 kvar |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Connecting Capacity Auxiliary Circuit | Flexible with Cable End 0.75 ... 2.5 mm² |
| Voltage type for actuating (EF008242) | AC |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Rated reactive power at 400 V, 50 Hz (EF007044) | 45 kvar |
| Rated control supply voltage AC 50 Hz (EF003978) | 500 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 600 V |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Connecting Terminals (delivered in open position) Main Poles | M 6 (+,-) pozidriv 2 screws with 1x (13 x 10 mm) connector |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
Product Description
UA63-30-00 CONT. condens. 45kVAr 500V
