1SBL347501R1400

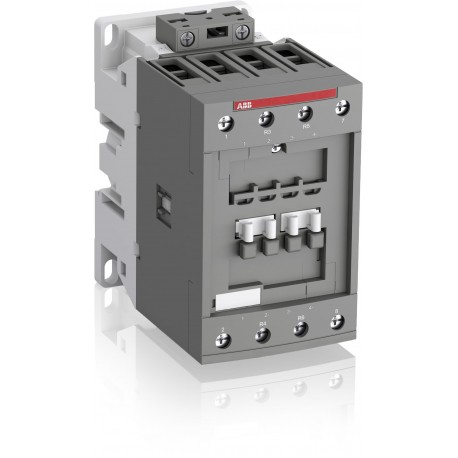

1SBL347501R1400 ABB AF40-22-00-14 250-500V50/60HZ-DC Contactor
$0.00USD
4963 in stock
Key Specifications
:Main Circuit 50 / 60 Hz
ETIM 4:EC000066 - Magnet contactor, AC-switching
ETIM 5:EC000066 - Magnet contactor, AC-switching
ETIM 6:EC000066 - Power contactor, AC switching
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Main Circuit 50 / 60 Hz | |
| ETIM 4 | EC000066 - Magnet contactor, AC-switching |
| ETIM 5 | EC000066 - Magnet contactor, AC-switching |
| ETIM 6 | EC000066 - Power contactor, AC switching |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| UNSPSC | 39121529 |
| eClass | V11.0 : 27371003 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22 |
| RoHS Status | Following EU Directive 2011/65/EU |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| BV Certificate | BV_2634H36994B1 |
| CB Certificate | CB_SE-113324 |
| KC Certificate | KC_HW02016-15009C |
| UL Certificate | UL-US-L312527-1142-02114102-6 |
| WEEE B2C / B2B | Business To Business |
| ABS Certificate | ABS_20-2060694-PDA |
| CCC Certificate | CCC_2015010304824714 |
| CQC Certificate | CQC2015010304824714 |
| DNV Certificate | DNV_TAE00001AF-4 |
| EAC Certificate | EAC_RU_FRME77B03447 |
| UL Listing Card | UL_E312527 |
| Coil Consumption | Average Holding Value 50 / 60 Hz 4 V·A |
| RoHS Information | 2CMT2021-006277 |
| E-Number (Sweden) | 3210308 |
| Product Net Width | 70 mm |
| REACH Declaration | 2CMT2021-006202 |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| E-Number (Finland) | 3707556 |
| Product Net Height | 125.5 mm |
| Product Net Weight | 1.16 kg |
| Package Level 1 EAN | 3471523133846 |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Customs Tariff Number | 85364900 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 2 Units | box 8 piece |
| Package Level 2 Width | 250 mm |
| Package Level 3 Units | 192 piece |
| Wire Stripping Length | Control Circuit 10 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 103 mm |
| Package Level 2 Height | 300 mm |
| Ambient Air Temperature | Close to Contactor for Storage -60 ... +80 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| End of Life Instructions | 1SBC101081M6801 |
| Instructions and Manuals | 1SBC101047M6801 |
| Resistance to Vibrations | 3g Closed Position & 2g Open Position 5 ... 300 Hz |
| Tightening Torque UL/CSA | Control Circuit 11 in·lb |
| General Use Rating UL/CSA | (600 V AC) 60 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 A |
| Rated Operational Voltage | Main Circuit 690 V |
| Number of Main Contacts NC | 2 |
| Number of Main Contacts NO | 2 |
| Object Classification Code | Q |
| Product Net Depth / Length | 113.5 mm |
| Package Level 1 Gross Weight | 1.27 kg |
| Package Level 2 Gross Weight | 10.16 kg |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 690 V |
| Declaration of Conformity - CE | 1SBD250001U1000 |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 2 Depth / Length | 300 mm |
| Declaration of Conformity - CCC | 2020980304001256 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 4 ... 35 mm² |
| Declaration of Conformity - UKCA | 1SBD250032U1000 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Mounting by Screws (not supplied) | 2 x M4 or 2 x M6 screws placed diagonally |
| Rated Operational Power AC-3 (Pe) | (415 V) 22 kW |
| IDEA Granular Category Code (IGCC) | 4758 >> Iec Contactors |
| Rated Control Circuit Voltage (Uc) | 50 Hz 250 ... 500 V |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 70 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 40 A |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Connecting Capacity Main Circuit UL/CSA | Rigid Stranded 1/2x 10-2 AWG |
| Environmental Product Declaration - EPD | 2TFP200016A1001 |
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 105 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 A |
Product Description
AF40-22-00-14 CONT 4P BOB. 250-500VAC/DC
