1SBL281074R8101

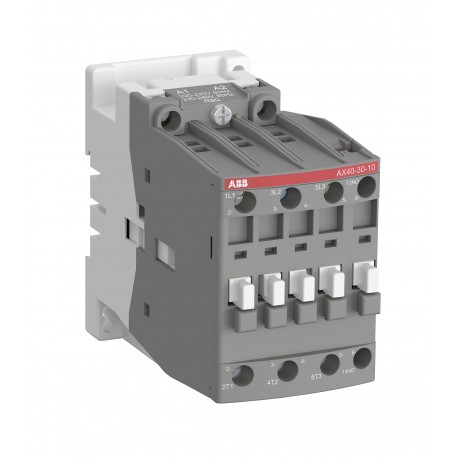

1SBL281074R8101 ABB AX32-30-01-81 24V50/60Hz
$0.00USD
4300 in stock
Key Specifications
:Main Circuit 690 V
ETIM 6:EC000066 - Power contactor, AC switching
ETIM 7:EC000066 - Power contactor, AC switching
ETIM 8:EC000066 - Power contactor, AC switching
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Main Circuit 690 V | |
| ETIM 6 | EC000066 - Power contactor, AC switching |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| UNSPSC | 39121529 |
| eClass | V11.0 : 27371003 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Operate Time | Between Coil De-energization and NC Contact Closing 7 ... 14 ms |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CB Certificate | 9AKK107492A7073 |
| UL Certificate | UL_20140702-E312527-10-6 |
| WEEE B2C / B2B | Business To Business |
| CCC Certificate | 9AKK107492A7090 |
| CCS Certificate | GZ23PTB00147 |
| CQC Certificate | CQC2013010304647116 |
| RoHS Information | 2CMT2021-006277 |
| Product Net Width | 54 mm |
| REACH Declaration | 2CMT2021-006202 |
| Climatic Withstand | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| E-Number (Finland) | 3707339 |
| Product Net Height | 108.3 mm |
| Product Net Weight | 0.667 kg |
| Package Level 1 EAN | 3471522400819 |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Customs Tariff Number | 85364900 |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 65 mm |
| Package Level 2 Units | 12 piece |
| Package Level 2 Width | 240 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 115 mm |
| Package Level 2 Height | 145 mm |
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Horsepower Rating UL/CSA | (120 V AC) Single Phase 3 hp |
| Instructions and Manuals | 9AKK107492A7057 |
| Tightening Torque UL/CSA | Auxiliary Circuit 9 in·lb |
| General Use Rating UL/CSA | (600 V AC) 50 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 820 A |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 3 |
| Object Classification Code | Q |
| Product Net Depth / Length | 90 mm |
| Package Level 1 Gross Weight | 0.71 kg |
| Package Level 2 Gross Weight | 8.52 kg |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V |
| Declaration of Conformity - CE | 1SBD250011U1000 |
| Package Level 1 Depth / Length | 101 mm |
| Package Level 2 Depth / Length | 295 mm |
| Declaration of Conformity - CCC | 2020980304001065 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 0 |
| Rated Operational Power AC-3 (Pe) | (415 V) 15 kW |
| IDEA Granular Category Code (IGCC) | 4755 >> Contactors |
| Rated Control Circuit Voltage (Uc) | 50 Hz 24 V |
| Rated Operational Current AC-1 (Ie) | (220 / 240 V) 55 °C 55 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 32 A |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Rated Operational Current AC-15 (Ie) | (500 V) NC 2 |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 65 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 400 A |
Product Description
AX32-30-01-81 24V 50/60Hz Contactor
