1SBL137001R1210

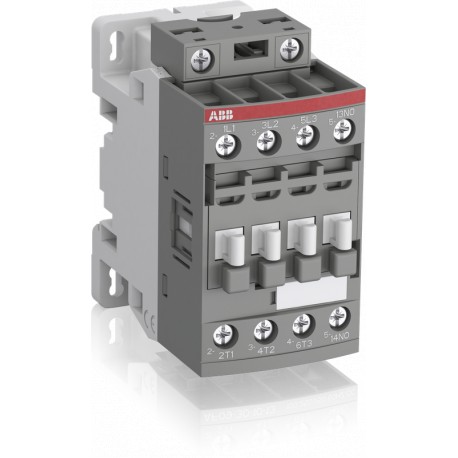

1SBL137001R1210 ABB AF09-30-10-12 48-130V50/60HZ-DC Contactor
$0.00USD
4060 in stock
Key Specifications
:Main Circuit 690 V
ETIM 4:EC000066 - Magnet contactor, AC-switching
ETIM 5:EC000066 - Magnet contactor, AC-switching
ETIM 6:EC000066 - Power contactor, AC switching
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Main Circuit 690 V | |
| ETIM 4 | EC000066 - Magnet contactor, AC-switching |
| ETIM 5 | EC000066 - Magnet contactor, AC-switching |
| ETIM 6 | EC000066 - Power contactor, AC switching |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| UNSPSC | 39121529 |
| eClass | V11.0 : 27371003 |
| NEMA Size | 00 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| RoHS Status | Following EU Directive 2011/65/EU |
| Feature Name | Feature Value |
| Operate Time | Between Coil De-energization and NC Contact Closing 13 ... 98 ms |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| BV Certificate | BV_2634H24898C0 |
| CB Certificate | CB_SE-113345 |
| KC Certificate | KC_HW02016-15004C |
| LR Certificate | LRS_LR23403517TA-02 |
| UL Certificate | UL-US-2150887-5 |
| WEEE B2C / B2B | Business To Business |
| ABS Certificate | ABS_20-2060694-PDA |
| CCC Certificate | CCC_2010010304445624 |
| CQC Certificate | CQC2010010304445624 |
| DNV Certificate | DNV_TAE00001AF-4 |
| EAC Certificate | EAC_RU_FRME77B03447 |
| UL Listing Card | E312527 |
| GOST Certificate | GOST_POCCFR.ME77.B07175.pdf |
| RINA Certificate | RINA_ELE240318XG |
| RMRS Certificate | RMRS_1802705280 |
| RoHS Information | 2CMT2021-006277 |
| E-Number (Sweden) | 3210007 |
| Product Net Width | 45 mm |
| REACH Declaration | 2CMT2021-006202 |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| E-Number (Finland) | 3706200 |
| Product Net Height | 86 mm |
| Product Net Weight | 0.27 kg |
| Package Level 1 EAN | 3471523110021 |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Customs Tariff Number | 85364900 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 87 mm |
| Package Level 2 Units | box 27 piece |
| Package Level 2 Width | 250 mm |
| Package Level 3 Units | 1296 piece |
| Wire Stripping Length | Auxiliary Circuit 10 mm |
| Horsepower Rating NEMA | (115 V AC) Single Phase 1/3 Hp |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 47 mm |
| Package Level 2 Height | 315 mm |
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| End of Life Instructions | 1SBC101080M6801 |
| Horsepower Rating UL/CSA | (120 V AC) Single Phase 3/4 hp |
| Instructions and Manuals | 1SBC101027M6801 |
| Resistance to Vibrations | 4g Closed Position & 2g Open position 5 ... 300 Hz |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| General Use Rating UL/CSA | (600 V AC) 25 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Modular version (EF001126) | No |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 3 |
| Object Classification Code | Q |
| Product Net Depth / Length | 77 mm |
| Package Level 1 Gross Weight | 0.27 kg |
| Package Level 2 Gross Weight | 7.29 kg |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 690 V |
| Continuous Current Rating NEMA | 9 A |
| Declaration of Conformity - CE | 1SBD250000U1000 |
| Package Level 1 Depth / Length | 79 mm |
| Package Level 2 Depth / Length | 300 mm |
| Declaration of Conformity - CCC | 2020980304001253 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm² |
| Declaration of Conformity - UKCA | 1SBD250031U1000 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Mounting by Screws (not supplied) | 2 x M4 screws placed diagonally |
| Rated Operational Power AC-3 (Pe) | (400 V) 4 kW |
| IDEA Granular Category Code (IGCC) | 4758 >> Iec Contactors |
| Rated Control Circuit Voltage (Uc) | 50 Hz 48 ... 130 V |
| Rated Operational Power AC-3e (Pe) | (415 V) 4 kW |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 25 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 9 A |
| Rated Operational Current DC-1 (Ie) | (110 V) 1-Pole, 40 °C 10 A |
| Rated Operational Current DC-3 (Ie) | (110 V) 1-Pole, 40 °C 6 A |
| Rated Operational Current DC-5 (Ie) | (110 V) 1-Pole, 40 °C 4 A |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| Rated Operational Current AC-3e (Ie) | (415 V) 60 °C 9 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Rated operation power NEMA (EF011960) | 1.4914 kW |
| Voltage type for actuating (EF008242) | AC/DC |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Connecting Capacity Main Circuit UL/CSA | Rigid Solid 1/2x 16-10 AWG |
| Environmental Product Declaration - EPD | 1SBD250584E3000 |
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Rated control supply voltage DC (EF003980) | 48 V |
| Resistance to Shock acc. to IEC 60068-2-27 | Closed, Shock Direction: B1 25 g |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A |
| Connecting Capacity Auxiliary Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Rated operation power at AC-3, 400 V (EF001364) | 4 kW |
| Rated control supply voltage AC 50 Hz (EF003978) | 48 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 48 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 25 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 9 A |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
Product Description
AF09-30-10 CONT.3P BOB 48-130Vac-dc
