1SBL136560R2200

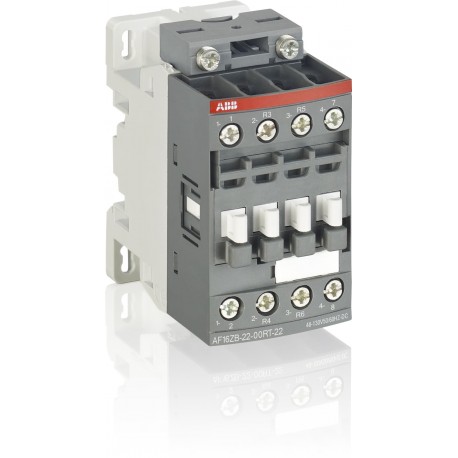

1SBL136560R2200 ABB AF09ZB-22-00RTCONT.TRAC.B.48-130VAC-DC
$0.00USD
4898 in stock
Key Specifications
:Main Circuit 50 / 60 Hz
ETIM 4:EC000066 - Magnet contactor, AC-switching
ETIM 5:EC000066 - Magnet contactor, AC-switching
ETIM 6:EC000066 - Power contactor, AC switching
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Main Circuit 50 / 60 Hz | |
| ETIM 4 | EC000066 - Magnet contactor, AC-switching |
| ETIM 5 | EC000066 - Magnet contactor, AC-switching |
| ETIM 6 | EC000066 - Power contactor, AC switching |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| UNSPSC | 39121529 |
| eClass | V11.0 : 27371003 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| RoHS Status | Following EU Directive 2011/65/EU |
| Operate Time | Between Coil De-energization and NC Contact Closing 13 ... 98 ms |
| Terminal Type | Ring-Tongue Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CB Certificate | CB_SE-113345 |
| UR Certificate | UL_20121126-E319322_4_1 |
| WEEE B2C / B2B | Business To Business |
| CCC Certificate | CCC_2010010304445624 |
| CQC Certificate | CQC2010010304445624 |
| EAC Certificate | EAC_RU C-FR ME77 B03597 |
| UL Listing Card | UL_E319322 |
| RoHS Information | 2CMT2021-006277 |
| Product Net Width | 45 mm |
| REACH Declaration | 2CMT2021-006202 |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Product Net Height | 86 mm |
| Product Net Weight | 0.32 kg |
| Package Level 1 EAN | 3471523129726 |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Customs Tariff Number | 85364900 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 87 mm |
| Package Level 2 Units | box 27 piece |
| Package Level 2 Width | 250 mm |
| Package Level 3 Units | 1296 piece |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 47 mm |
| Package Level 2 Height | 315 mm |
| Ambient Air Temperature | Close to Contactor for Storage -60 ... +80 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| End of Life Instructions | 1SBC101080M6801 |
| Instructions and Manuals | 1SBC101035M6801 |
| Tightening Torque UL/CSA | Control Circuit 11 in·lb |
| General Use Rating UL/CSA | (600 V AC) 25 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A |
| Rated Operational Voltage | Main Circuit 690 V |
| Number of Main Contacts NC | 2 |
| Number of Main Contacts NO | 2 |
| Object Classification Code | Q |
| Product Net Depth / Length | 77 mm |
| Package Level 1 Gross Weight | 0.32 kg |
| Package Level 2 Gross Weight | 17.28 kg |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 690 V |
| Declaration of Conformity - CE | 1SBD250004U1000 |
| Package Level 1 Depth / Length | 79 mm |
| Package Level 2 Depth / Length | 300 mm |
| Declaration of Conformity - CCC | 2020980304001253 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Declaration of Conformity - UKCA | 1SBD250035U1000 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Mounting by Screws (not supplied) | 2 x M4 screws placed diagonally |
| Rated Operational Power AC-3 (Pe) | (400 V) 4 kW |
| IDEA Granular Category Code (IGCC) | 4758 >> Iec Contactors |
| Rated Control Circuit Voltage (Uc) | 50 Hz 48 ... 130 V |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 25 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 9 A |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Environmental Product Declaration - EPD | 1SBD250584E3000 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A |
Product Description
AF09ZB-22-00RT-22 48-130V50/60HZ-DC Contactor
