In Stock Hot Product
1SBL136261R2300

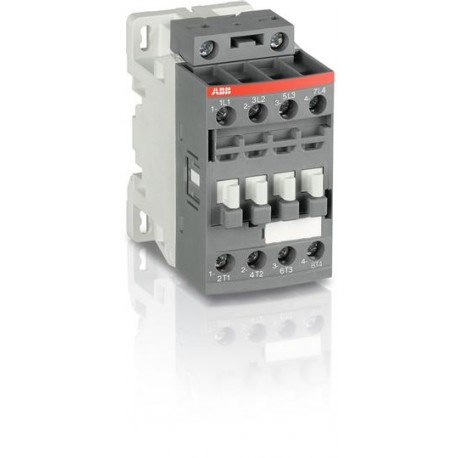

AF09ZB-40-00-23 1SBL136261R2300 ABB AF09ZB-40-00CONT.TRACBOB.100-250VAC-DC
$0.00USD
3601 in stock
Key Specifications
Customs Tariff Number::85364900
Minimum Order Quantity::1 piece
Operate Time: (Dimensions):Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms
Terminal Type: (Dimensions):Screw Terminals
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Customs Tariff Number: | 85364900 |
| Minimum Order Quantity: | 1 piece |
| Operate Time: (Dimensions) | Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms |
| Terminal Type: (Dimensions) | Screw Terminals |
| Climatic Withstand: (Technical) | Category B according to IEC 60947-1 Annex Q |
| ETIM 4: (Container Information) | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: (Container Information) | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: (Container Information) | EC000066 - Power contactor, AC switching |
| ETIM 7: (Container Information) | EC000066 - Power contactor, AC switching |
| UNSPSC: (Container Information) | 39121529 |
| Rated Frequency (f): (Dimensions) | Main Circuit 50 / 60 Hz |
| CB Certificate: (Technical UL/CSA) | CB_SE-80869M1 |
| Degree of Protection: (Dimensions) | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| KC Certificate: (Technical UL/CSA) | KC_HW02016-15007A |
| UL Certificate: (Technical UL/CSA) | UL_20120918-E319322-3-1 |
| CCC Certificate: (Technical UL/CSA) | CCC_2010010304445624 |
| EAC Certificate: (Technical UL/CSA) | EAC_RU C-FR ME77 B01010 |
| UL Listing Card: (Technical UL/CSA) | UL_E319322 |
| Wire Stripping Length: (Dimensions) | Control Circuit 10 mmMain Circuit 10 mm |
| Ambient Air Temperature: (Technical) | Close to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air -40 ... +70 °C |
| GOST Certificate: (Technical UL/CSA) | GOST_POCCFR.ME77.B07175.pdf |
| Instructions and Manuals: (Ordering) | 1SBC101037M6801 |
| RoHS Information: (Technical UL/CSA) | 1SBD251017E1000 |
| Product Net Width: (Popular Downloads) | 45 mm |
| Maximum Breaking Capacity: (Dimensions) | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A |
| Product Net Height: (Popular Downloads) | 86 mm |
| Product Net Weight: (Popular Downloads) | 0.31 kg |
| Rated Operational Voltage: (Dimensions) | Main Circuit 690 V |
| Number of Main Contacts NC: (Dimensions) | 0 |
| Number of Main Contacts NO: (Dimensions) | 4 |
| General Use Rating UL/CSA: (Environmental) | (600 V AC) 25 A |
| Rated Insulation Voltage (Ui): (Dimensions) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V |
| Instructions and Manuals: (Technical UL/CSA) | 1SBC101037M6801 |
| Data Sheet, Technical Information: (Ordering) | 1SBC100174C0201 |
| Environmental Information: (Technical UL/CSA) | 1SBD250167E1000 |
| Number of Auxiliary Contacts NC: (Dimensions) | 0 |
| Number of Auxiliary Contacts NO: (Dimensions) | 0 |
| Connecting Capacity Main Circuit: (Dimensions) | Flexible with Insulated Ferrule 1x 0.75 ... 4 mm²Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²Flexible with Ferrule 1/2x 0.75 ... 6 mm²Rigid 1/2x 1 ... 6 mm² |
| Product Net Depth / Length: (Popular Downloads) | 77 mm |
| Rated Operational Power AC-3 (Pe): (Dimensions) | (220 / 230 / 240 V) 2.2 kW(380 / 400 V) 4 kW(400 V) 4 kW(415 V) 4 kW(440 V) 4 kW(500 V) 5.5 kW(690 V) 5.5 kW |
| Rated Control Circuit Voltage (Uc): (Dimensions) | 50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V |
| Connecting Capacity Control Circuit: (Dimensions) | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid 1/2x 1 ... 2.5 mm² |
| Rated Operational Current AC-1 (Ie): (Dimensions) | (690 V) 40 °C 25 A(690 V) 60 °C 25 A(690 V) 70 °C 22 A |
| Rated Operational Current AC-3 (Ie): (Dimensions) | (220 / 230 / 240 V) 60 °C 9 A(380 / 400 V) 60 °C 9 A(415 V) 60 °C 9 A(440 V) 60 °C 9 A(500 V) 60 °C 9.5 A(690 V) 60 °C 7 A |
| Declaration of Conformity - CE: (Technical UL/CSA) | 1SBD250002U1000 |
| Maximum Operating Altitude Permissible: (Technical) | 3000 m |
| Object Classification Code: (Container Information) | Q |
| Maximum Electrical Switching Frequency: (Dimensions) | AC-1 600 cycles per hour |
| Maximum Mechanical Switching Frequency: (Dimensions) | 3600 cycles per hour |
| Rated Impulse Withstand Voltage (Uimp): (Dimensions) | 6 kV |
| Rated Short-time Withstand Current (Icw): (Dimensions) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 Afor 1 s -empty- A |
| Conventional Free-air Thermal Current (Ith): (Dimensions) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 35 A |
| Package Level 1 EAN: (Certificates and Declarations (Document Number)) | 3471523124431 |
| Package Level 1 Units: (Certificates and Declarations (Document Number)) | 1 piece |
| Package Level 1 Width: (Certificates and Declarations (Document Number)) | 87 mm |
| Package Level 2 Units: (Certificates and Declarations (Document Number)) | 54 piece |
| Package Level 2 Width: (Certificates and Declarations (Document Number)) | 250 mm |
| Package Level 3 Units: (Certificates and Declarations (Document Number)) | 1296 piece |
| Package Level 1 Height: (Certificates and Declarations (Document Number)) | 47 mm |
| Package Level 2 Height: (Certificates and Declarations (Document Number)) | 315 mm |
| Package Level 1 Gross Weight: (Certificates and Declarations (Document Number)) | 0.31 kg |
| Package Level 2 Gross Weight: (Certificates and Declarations (Document Number)) | 16.74 kg |
| Package Level 1 Depth / Length: (Certificates and Declarations (Document Number)) | 79 mm |
| Package Level 2 Depth / Length: (Certificates and Declarations (Document Number)) | 300 mm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
