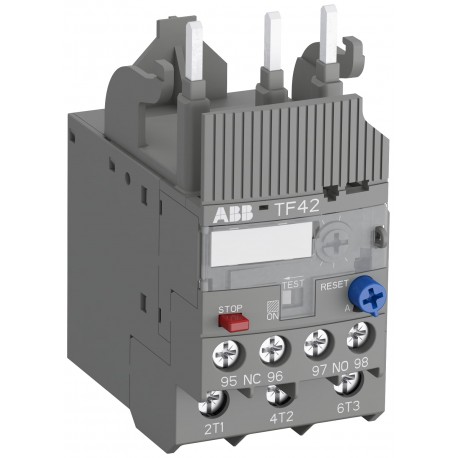

1SAZ721201R1053 ABB TF42-35 Thermal Overload Relay
$0.00USD
4658 in stock
Key Specifications
:Main Circuit 690 V AC
ETIM 4:EC000106 - Thermal overload relay
ETIM 5:EC000106 - Thermal overload relay
ETIM 6:EC000106 - Thermal overload relay
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Main Circuit 690 V AC | |
| ETIM 4 | EC000106 - Thermal overload relay |
| ETIM 5 | EC000106 - Thermal overload relay |
| ETIM 6 | EC000106 - Thermal overload relay |
| ETIM 7 | EC000106 - Thermal overload relay |
| ETIM 8 | EC000106 - Thermal overload relay |
| UNSPSC | 39122330 |
| eClass | V11.0 : 27371501 |
| Standards | IEC/EN 60947-1 |
| Power Loss | at Rated Operating Conditions per Pole 2.1 ... 2.8 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Feature Name | Feature Value |
| Suitable For | AF09 |
| Setting Range | 29 ... 35 A |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| BV Certificate | 1SAA941001-0203 |
| CB Certificate | 1SAA941009-2001 |
| GL Certificate | 1SAA941007-0401 |
| LR Certificate | 1SAA941001-0502 |
| UL Certificate | E48139-20090126 |
| WEEE B2C / B2B | Business To Business |
| ABS Certificate | 1SAA941001-0102 |
| CQC Certificate | CQC2011010309464423 |
| EAC Certificate | 1SAA941002-2701 |
| Number of Poles | 3 |
| ATEX Certificate | 1SAA941001-3901 |
| Pollution Degree | 3 |
| RINA Certificate | 1SAA941000-0802 |
| RMRS Certificate | 1SAA941000-0704 |
| RoHS Information | 2CMT2021-006277 |
| Dimension Diagram | 1SAZ700405F0001 |
| E-Number (Sweden) | 3211975 |
| IECEx Certificate | 1SAA941003-4001 |
| Product Net Width | 45 mm |
| REACH Declaration | 2CMT2021-006202 |
| Tightening Torque | Auxiliary Circuit 1 ... 1.2 N·m |
| DNV GL Certificate | 1SAA941001-0302 |
| E-Number (Finland) | 3706131 |
| Product Net Height | 88.3 mm |
| Product Net Weight | 0.145 kg |
| Package Level 1 EAN | 4013614398162 |
| Package Level 2 EAN | 4013614440229 |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Degree of Protection | IP20 |
| Contact Rating UL/CSA | (NC:) B600 |
| Customs Tariff Number | 85364900 |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Width | 48 mm |
| Package Level 2 Units | carton 40 piece |
| Package Level 2 Width | 280 mm |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 92 mm |
| Package Level 2 Height | 210 mm |
| A2L Certificate – IEC | 1SAA941000-4601 |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Instructions and Manuals | 2CDC106022M6802 |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Release class (EF006668) | CLASS 10 |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| Tightening Torque UL/CSA | Auxiliary Circuit 9 ... 11 in·lb |
| Environmental Information | 1SAC200057H0009 |
| Ex Operating Instructions | 2CDC106076M6801 |
| Number of Protected Poles | 3 |
| Rated Operational Voltage | Auxiliary Circuit 600 V AC/DC |
| Mounting method (EF000003) | Direct attachment |
| Object Classification Code | F |
| Product Net Depth / Length | 70.5 mm |
| Package Level 1 Gross Weight | 0.16 kg |
| Package Level 2 Gross Weight | 8.066 kg |
| Rated Insulation Voltage (Ui) | 690 V |
| Declaration of Conformity - CE | 1SAD101100-3503 |
| Package Level 1 Depth / Length | 78 mm |
| Package Level 2 Depth / Length | 395 mm |
| Rated Operational Current (Ie) | 35 A |
| Declaration of Conformity - CCC | 2020980304001788 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Reset function input (EF011940) | No |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 2.5 ... 10 mm² |
| Declaration of Conformity - UKCA | 1SAD201100-3503 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Data Sheet, Technical Information | 2CDC106023D0201 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| Time-Current Characteristic Curve | 1SAZ700506F0022 |
| IDEA Granular Category Code (IGCC) | 5366 >> Thermal overload relay |
| Adjustable current range (EF008211) | 29 A |
| Reset function automatic (EF011941) | Yes |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Ambient Air Temperature Compensation | Yes |
| Rated Operational Current AC-15 (Ie) | (120 V) NC 3 A |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.55 A |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Reset function push-button (EF011942) | Yes |
| Maximum Operating Altitude Permissible | 2000 m |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 14-6 AWG |
| Environmental Product Declaration - EPD | 1SAC200371M0001 |
| Max. rated operation voltage Ue (EF007357) | 690 V |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 6 A |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 18-12 AWG |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of auxiliary contacts as change-over contact (EF003531) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
Product Description
TF42-35 RELe TeRM CLASS 10, 29.0-35.0 A
