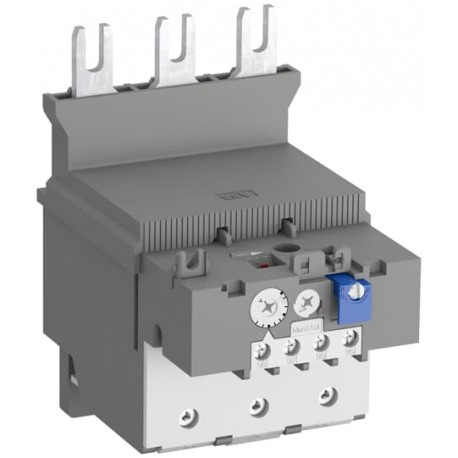

1SAZ431301R1001 ABB TF140DU-90-V-1000 Thermal Overload Relay
$0.00USD
4504 in stock
Key Specifications
:Auxiliary Circuit 500 V AC
ETIM 5:EC000106 - Thermal overload relay
ETIM 6:EC000106 - Thermal overload relay
ETIM 7:EC000106 - Thermal overload relay
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Auxiliary Circuit 500 V AC | |
| ETIM 5 | EC000106 - Thermal overload relay |
| ETIM 6 | EC000106 - Thermal overload relay |
| ETIM 7 | EC000106 - Thermal overload relay |
| ETIM 8 | EC000106 - Thermal overload relay |
| UNSPSC | 39121520 |
| eClass | V11.0 : 27371501 |
| Standards | IEC/EN 60947-1 |
| Power Loss | at Rated Operating Conditions per Pole 2.1 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Feature Name | Feature Value |
| Suitable For | AF116 |
| Setting Range | 66 ... 90 A |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| BG Certificate | 1SAA941012-2001 |
| BV Certificate | 1SAA941003-0201 |
| CB Certificate | 1SAA941012-2001 |
| LR Certificate | 1SAA941004-0501 |
| UL Certificate | E48139-20120831 |
| WEEE B2C / B2B | Business To Business |
| ABS Certificate | 1SAA941004-0101 |
| CQC Certificate | CQC2016010309922935 |
| EAC Certificate | 1SAA941002-2702 |
| Number of Poles | 3 |
| ATEX Certificate | 1SAA941003-3901 |
| Pollution Degree | 3 |
| RINA Certificate | RINA_ELE098115XG |
| RMRS Certificate | 1SAA941002-0701 |
| RoHS Information | 1SAD938507-0192 |
| Dimension Diagram | 1SAZ400404F0001 |
| IECEx Certificate | 1SAA941004-4001 |
| Mounting Position | any |
| Product Net Width | 89 mm |
| Tightening Torque | Auxiliary Circuit 0.8 ... 1.2 N·m |
| DNV GL Certificate | 1SAA941004-0301 |
| Product Net Height | 140 mm |
| Product Net Weight | 0.82 kg |
| Package Level 1 EAN | 4013614499517 |
| Package Level 2 EAN | 4013614503719 |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Degree of Protection | Housing IP20 |
| Contact Rating UL/CSA | (NC:) B600 |
| Customs Tariff Number | 85364900 |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Width | 165 mm |
| Package Level 2 Units | 4 piece |
| Package Level 2 Width | 280 mm |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 133 mm |
| Package Level 2 Height | 210 mm |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| End of Life Instructions | 1SAC200334H0001 |
| Instructions and Manuals | 2CDC106050M6802 |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 2 |
| Release class (EF006668) | CLASS 10 A |
| Tightening Torque UL/CSA | Auxiliary Circuit 12 in·lb |
| Environmental Information | 1SAC200090H0009 |
| Ex Operating Instructions | 2CDC106082M6801 |
| Number of Protected Poles | 3 |
| Rated Operational Voltage | Auxiliary Circuit 440 V DC |
| Mounting method (EF000003) | Direct attachment |
| Product Net Depth / Length | 126 mm |
| Package Level 1 Gross Weight | 0.945 kg |
| Package Level 2 Gross Weight | 8.786 kg |
| Rated Insulation Voltage (Ui) | 690 V |
| Declaration of Conformity - CE | 1SAD101100-3508 |
| Package Level 1 Depth / Length | 151 mm |
| Package Level 2 Depth / Length | 395 mm |
| Rated Operational Current (Ie) | 90 A |
| Declaration of Conformity - CCC | 2020980304001320 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Reset function input (EF011940) | No |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 16 ... 70 mm² |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Data Sheet, Technical Information | 2CDC106061D0201 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| IDEA Granular Category Code (IGCC) | 5364 >> Overload relay |
| Adjustable current range (EF008211) | 66 A |
| Reset function automatic (EF011941) | Yes |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Ambient Air Temperature Compensation | Yes |
| Rated Operational Current AC-15 (Ie) | (120 V) NC 3 A |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.25 A |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Reset function push-button (EF011942) | Yes |
| Maximum Operating Altitude Permissible | 2000 m |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 6-2/0 AWG |
| Environmental Product Declaration - EPD | 1SAC200274H0001 |
| Max. rated operation voltage Ue (EF007357) | 690 V |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 12g |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 10 A |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 18-14 AWG |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of auxiliary contacts as change-over contact (EF003531) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
Product Description
TF140DU-90-V-1000 V.ATEX OVERLOAD RELAY
