1SAX121001R1104

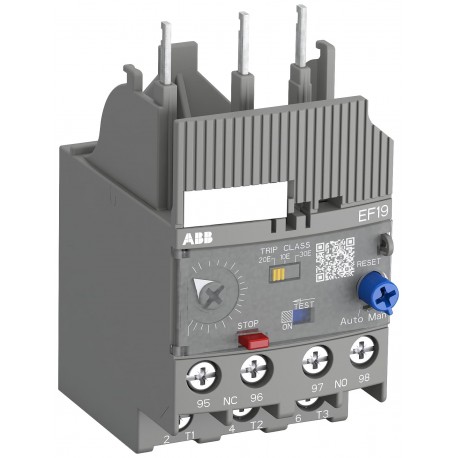

1SAX121001R1104 ABB EF19-6.3 Electronic Overload Relay
$0.00USD
4524 in stock
Key Specifications
:1SAX100510F0001
ETIM 4:EC001080 - Electronic overload relay
ETIM 5:EC001080 - Electronic overload relay
ETIM 6:EC001080 - Electronic overload relay
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1SAX100510F0001 | |
| ETIM 4 | EC001080 - Electronic overload relay |
| ETIM 5 | EC001080 - Electronic overload relay |
| ETIM 6 | EC001080 - Electronic overload relay |
| ETIM 7 | EC001080 - Electronic overload relay |
| ETIM 8 | EC001080 - Electronic overload relay |
| UNSPSC | 39122330 |
| eClass | V11.0 : 27371502 |
| Standards | IEC/EN 60947-1 |
| Power Loss | at Rated Operating Conditions per Pole 0.008 ... 0.083 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Suitable For | AF09 |
| Setting Range | 1.9 ... 6.3 A |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| BV Certificate | 1SAA941002-0201 |
| CB Certificate | 1SAA964002-2002 |
| LR Certificate | 1SAA941002-0501 |
| UL Certificate | E48139-19990512 |
| WEEE B2C / B2B | Business To Business |
| ABS Certificate | 1SAA941002-0102 |
| CCS Certificate | 1SAA941001-0901 |
| CQC Certificate | CQC2008010309289447 |
| DNV Certificate | 1SAA941003-0302 |
| EAC Certificate | 1SAA941003-2701 |
| Number of Poles | 3 |
| ATEX Certificate | 1SAA941004-3901 |
| Pollution Degree | 3 |
| RINA Certificate | RINA_ELE376813CS |
| RMRS Certificate | 1SAA964000-0703 |
| RoHS Information | 2CMT2021-006277 |
| Dimension Diagram | 1SAX100403F0001 |
| E-Number (Sweden) | 3224183 |
| IECEx Certificate | 1SAA941000-4001 |
| Mounting Position | 1 ... 6 |
| Product Net Width | 44.4 mm |
| REACH Declaration | 2CMT2021-006202 |
| Tightening Torque | Auxiliary Circuit 0.8 ... 1.2 N·m |
| E-Number (Finland) | 3706154 |
| Product Net Height | 85 mm |
| Product Net Weight | 0.158 kg |
| Package Level 1 EAN | 4013614404016 |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Degree of Protection | IP20 |
| Contact Rating UL/CSA | (NC:) B600 |
| Customs Tariff Number | 85364900 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 91 mm |
| Package Level 2 Units | 100 piece |
| Package Level 2 Width | 463 mm |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 51.5 mm |
| Package Level 2 Height | 276 mm |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Instructions and Manuals | 2CDC107023M6803 |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 2 |
| Resistance to Vibrations | 3g 3 ... 150 Hz |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 ... 1 in·lb |
| Environmental Information | 1SAC200096H0001 |
| Ex Operating Instructions | 2CDC107043M6801 |
| Number of Protected Poles | 3 |
| Rated Operational Voltage | Auxiliary Circuit 600 V AC/DC |
| Object Classification Code | F |
| Product Net Depth / Length | 59.3 mm |
| Package Level 1 Gross Weight | 0.183 kg |
| Package Level 2 Gross Weight | 18.863 kg |
| Rated Insulation Voltage (Ui) | 690 V |
| Declaration of Conformity - CE | 1SAD101100-3601 |
| Package Level 1 Depth / Length | 68 mm |
| Package Level 2 Depth / Length | 263 mm |
| Rated Operational Current (Ie) | 6.3 A |
| Declaration of Conformity - CCC | 2020980309000285 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Declaration of Conformity - UKCA | 1SAD201100-3601 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Data Sheet, Technical Information | 2CDC107025D0201 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| Time-Current Characteristic Curve | 1SAX100509F0002 |
| IDEA Granular Category Code (IGCC) | 5365 >> Electronic overload relay |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Ambient Air Temperature Compensation | Yes |
| Rated Operational Current AC-15 (Ie) | (240 V) NC 3 A |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.55 A |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Maximum Operating Altitude Permissible | 2000 m |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-10 AWG |
| Environmental Product Declaration - EPD | 1SAC200355H0001 |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 6 A |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 18-10 AWG |
