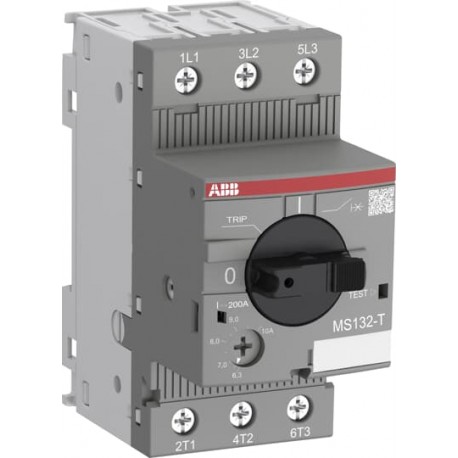

1SAM340000R1003 ABB MS132-0.4T Circuit Breaker for Primary Transformer Protection
$0.00USD
4058 in stock
Key Specifications
:(400 V AC) 100 kA
ETIM 4:EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 5:EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 6:EC000228 - Power circuit-breaker for trafo/generator/installation prot.
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (400 V AC) 100 kA | |
| ETIM 4 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27370409 |
| Standards | IEC/EN 60947-1 |
| Power Loss | at Rated Operating Conditions per Pole 0.6 ... 1.5 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Feature Name | Feature Value |
| Actuator Type | Rotary Handle |
| Setting Range | 0.25 ... 0.40 A |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CB Certificate | 1SAA963002-2002 |
| KC Certificate | 1SAA963002-1502 |
| UL Certificate | E137861-20090225 |
| WEEE B2C / B2B | Business To Business |
| CCC Certificate | 2020980307003526 |
| CQC Certificate | CQC2010010307387700 |
| Number of Poles | 3 |
| Pollution Degree | 3 |
| RMRS Certificate | 1SAA918000-0704 |
| RoHS Information | 1SAA963006-4502 |
| Dimension Diagram | 1SAM300402F0001 |
| Locked Rotor Amps | (120 V AC) Single Phase 2.4 A |
| Mounting Position | 1 ... 6 |
| Product Net Width | 45 mm |
| REACH Declaration | 1SAA963005-4502 |
| Tightening Torque | Main Circuit 0.8 ... 1.2 N·m |
| E-Number (Finland) | 3707267 |
| Product Net Height | 90 mm |
| Product Net Weight | 0.215 kg |
| I²t Characteristic | 1SAM300517F0001 |
| Package Level 1 EAN | 4013614484933 |
| Package Level 2 EAN | 4013614487132 |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Degree of Protection | Housing IP20 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Customs Tariff Number | 85362010 |
| Electrical Durability | 50000 cycle |
| Mechanical Durability | 100000 cycle |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 92 mm |
| Package Level 2 Units | carton 40 piece |
| Package Level 2 Width | 280 mm |
| Wire Stripping Length | Main Circuit 9 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 50 mm |
| Package Level 2 Height | 210 mm |
| A2L Certificate – IEC | 1SAA963000-4601 |
| Ambient Air Temperature | Around the Enclosure 0 ... +40 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| End of Life Instructions | 1SAC200332H0001 |
| Full Load Amps Motor Use | (120 V AC) Single Phase 0.4 A |
| Instructions and Manuals | 2CDC131057M6801 |
| Rated voltage (EF003977) | 690 V |
| Recommended Screw Driver | M3.5 |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| Tightening Torque UL/CSA | Main Circuit 10 ... 12 in·lb |
| Minimum Mounting Distance | Electrical Conductive Board, Vertical 75 mm |
| Operating Frequency (fsw) | 0 ... 400 Hz |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Number of poles (EF001391) | 3 |
| Object Classification Code | F |
| Product Net Depth / Length | 86.75 mm |
| Contact Position Indication | ON / OFF / TRIP |
| Package Level 1 Gross Weight | 0.23 kg |
| Package Level 2 Gross Weight | 9.586 kg |
| Rated Insulation Voltage (Ui) | 690 V |
| Declaration of Conformity - CE | 1SAD101100-3404 |
| Device construction (EF008240) | Complete device in housing |
| Package Level 1 Depth / Length | 95 mm |
| Package Level 2 Depth / Length | 395 mm |
| Rated Operational Current (Ie) | 0.4 A |
| Declaration of Conformity - CCC | 2020980307003526 |
| Motor drive optional (EF007386) | No |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Declaration of Conformity - UKCA | 1SAD201100-3404 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Data Sheet, Technical Information | 2CDC131058D0201 |
| Instructions and Manuals (Part 2) | 2CDC131060M0202 |
| Motor drive integrated (EF006697) | No |
| Time-Current Characteristic Curve | 1SAM300535F0103 |
| IDEA Granular Category Code (IGCC) | 4864 >> Enclosed 3 Pole Circuit Breakers |
| Type of control element (EF006976) | Rotating button |
| Short-Circuit Current Rating (SCCR) | Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| Ambient Air Temperature Compensation | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated permanent current Iu (EF001389) | 0.4 A |
| Maximum Operating Altitude Permissible | 2000 m |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| With switched-off indicator (EF007006) | Yes |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-12 AWG |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 0.4 A |
| Overload release current setting (EF002336) | 0.25 A |
| Integrated earth fault protection (EF007296) | No |
| Complete device with protection unit (EF008906) | Yes |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 100 kA |
| DIN rail (top hat rail) mounting optional (EF008904) | Yes |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 100 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 8 A |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Position of connection for main current circuit (EF006671) | Front |
| Adjustment range undelayed short-circuit release (EF007131) | 8 A |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) | 100 kA |
