1SAM201912R1011

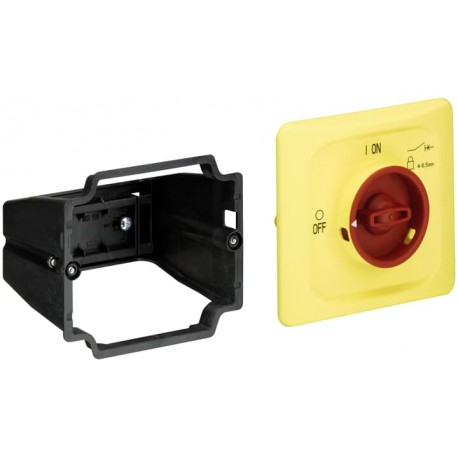

1SAM201912R1011 ABB DMS132-Y Door Mounting Kit
$0.00USD
3363 in stock
Key Specifications
:IEC/EN 60947-1
Color:yellow / red
ETIM 4:EC002498 - Accessories for low-voltage switch technology
ETIM 5:EC002498 - Accessories for low-voltage switch technology
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| IEC/EN 60947-1 | |
| Color | yellow / red |
| ETIM 4 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 31162313 |
| eClass | V11.0 : 27371392 |
| Remarks | For detailed specification see installation instruction |
| Standards | CSA 22.2 No. 14 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Feature Name | Feature Value |
| Product Name | Door Mounting Kit |
| Suitable For | MS116 |
| Actuator Type | Rotary Handle |
| WEEE Category | Product Not in WEEE Scope |
| Accessory Type | Door Mounting Kit |
| UL Certificate | UL_E137861 |
| Accessory Group | Mechanical |
| cUL Certificate | cUL_E137861 |
| RoHS Information | 1SAA963006-4502 |
| Dimension Diagram | 1SAM200440F0001 |
| Product Net Width | 137 mm |
| REACH Declaration | 1SAA963005-4502 |
| E-Number (Finland) | 3705862 |
| Product Net Height | 121 mm |
| Product Net Weight | 0.17 kg |
| Package Level 1 EAN | 4013614421655 |
| Accessory (EF013236) | Yes |
| Degree of Protection | IP65 |
| Customs Tariff Number | 85389099 |
| Enclosure Type UL/CSA | 12 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 129 mm |
| Spare part (EF013237) | No |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 141 mm |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Instructions and Manuals | 2CDC131029M6804 |
| Product Net Depth / Length | 120 mm |
| Suitable for Product Class | Manual Motor Starter |
| Contact Position Indication | ON / OFF / TRIP |
| Package Level 1 Gross Weight | 0.265 kg |
| Declaration of Conformity - CE | 1SAD101100-3411 |
| Package Level 1 Depth / Length | 129 mm |
| Declaration of Conformity - UKCA | 1SAD201100-3411 |
| Data Sheet, Technical Information | 1SBC100173C0201 |
| IDEA Granular Category Code (IGCC) | 2988 >> Mounting kits |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| Type of accessory/spare part (EF000215) | Mounting set |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
DMS132-Y KIT MOUNT. TO DOOR, AM/RO , IP65
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
