1SAM201906R1122

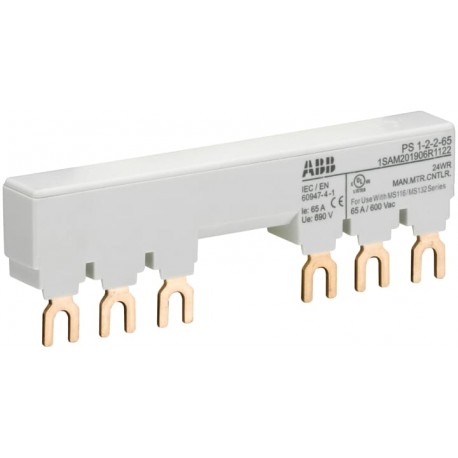

1SAM201906R1122 ABB PS1-2-2-65 Busbar
$0.00USD
3765 in stock
Key Specifications
:2CDC131034M6801
ETIM 4:EC002498 - Accessories for low-voltage switch technology
ETIM 5:EC000215 - Phase busbar
ETIM 6:EC000215 - Phase busbar
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 2CDC131034M6801 | |
| ETIM 4 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5 | EC000215 - Phase busbar |
| ETIM 6 | EC000215 - Phase busbar |
| ETIM 7 | EC000215 - Phase busbar |
| ETIM 8 | EC000215 - Phase busbar |
| UNSPSC | 39121117 |
| eClass | V11.0 : 27371306 |
| Standards | IEC/EN 60947-1 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Feature Name | Feature Value |
| Product Name | Busbar |
| Suitable For | MS116 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Accessory Type | 3-Phase Busbar |
| UL Certificate | E121190-20000619 |
| WEEE B2C / B2B | Business To Business |
| Accessory Group | Electrical |
| Connection Type | Fork |
| cUL Certificate | 1SAA963001-1701 |
| Number of Phases | 3 |
| Pollution Degree | 3 |
| RoHS Information | 1SAA963006-4502 |
| Colour (EF000007) | Grey |
| Dimension Diagram | 1SAM200450F0009 |
| E-Number (Sweden) | 3111683 |
| Length (EF001438) | 104.5 mm |
| Product Net Width | 104.5 mm |
| REACH Declaration | 1SAA963005-4502 |
| E-Number (Finland) | 3705928 |
| Product Net Height | 32.3 mm |
| Product Net Weight | 0.04 kg |
| Package Level 1 EAN | 4013614488146 |
| Degree of Protection | IP20 |
| Insulated (EF000019) | Yes |
| Customs Tariff Number | 85369010 |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 80 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 46 mm |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Module width (EF007504) | 14 mm |
| Cross section (EF000649) | 8 mm² |
| Instructions and Manuals | 2CDC131011M6802 |
| Rated Operational Voltage | 690 V AC |
| Number of poles (EF001391) | 3 |
| Object Classification Code | W |
| Product Net Depth / Length | 13 mm |
| Suitable for Product Class | Manual Motor Starter |
| Number of Mountable Devices | 2 |
| Number of phases (EF000351) | 3 |
| Package Level 1 Gross Weight | 0.43 kg |
| Declaration of Conformity - CE | 1SAD101100-3411 |
| Package Level 1 Depth / Length | 120 mm |
| Rated Operational Current (Ie) | 65 A |
| Rated surge voltage (EF002993) | 6 kV |
| Declaration of Conformity - UKCA | 1SAD201100-3411 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals (Part 3) | 1SBC100214C0202 |
| IDEA Granular Category Code (IGCC) | 4378 >> Phase busbar |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| Number of Lateral Auxiliary Contacts | 2 |
| Rated permanent current Iu (EF001389) | 65 A |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Type of electric connection (EF003961) | Fork |
| Suitable for number of devices (EF007241) | 2 |
| Max. rated operation voltage Ue (EF007357) | 690 V |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Width in number of modular spacings (EF002950) | 5.97 |
| Suitable for devices with N-conductor (EF007218) | No |
| Conditioned rated short-circuit current Iq (EF001444) | 100 kA |
| Suitable for devices with auxiliary switch (EF007217) | Yes |
Product Description
PS1-2-2-65 BLO. BAR. P/MS116/32
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
